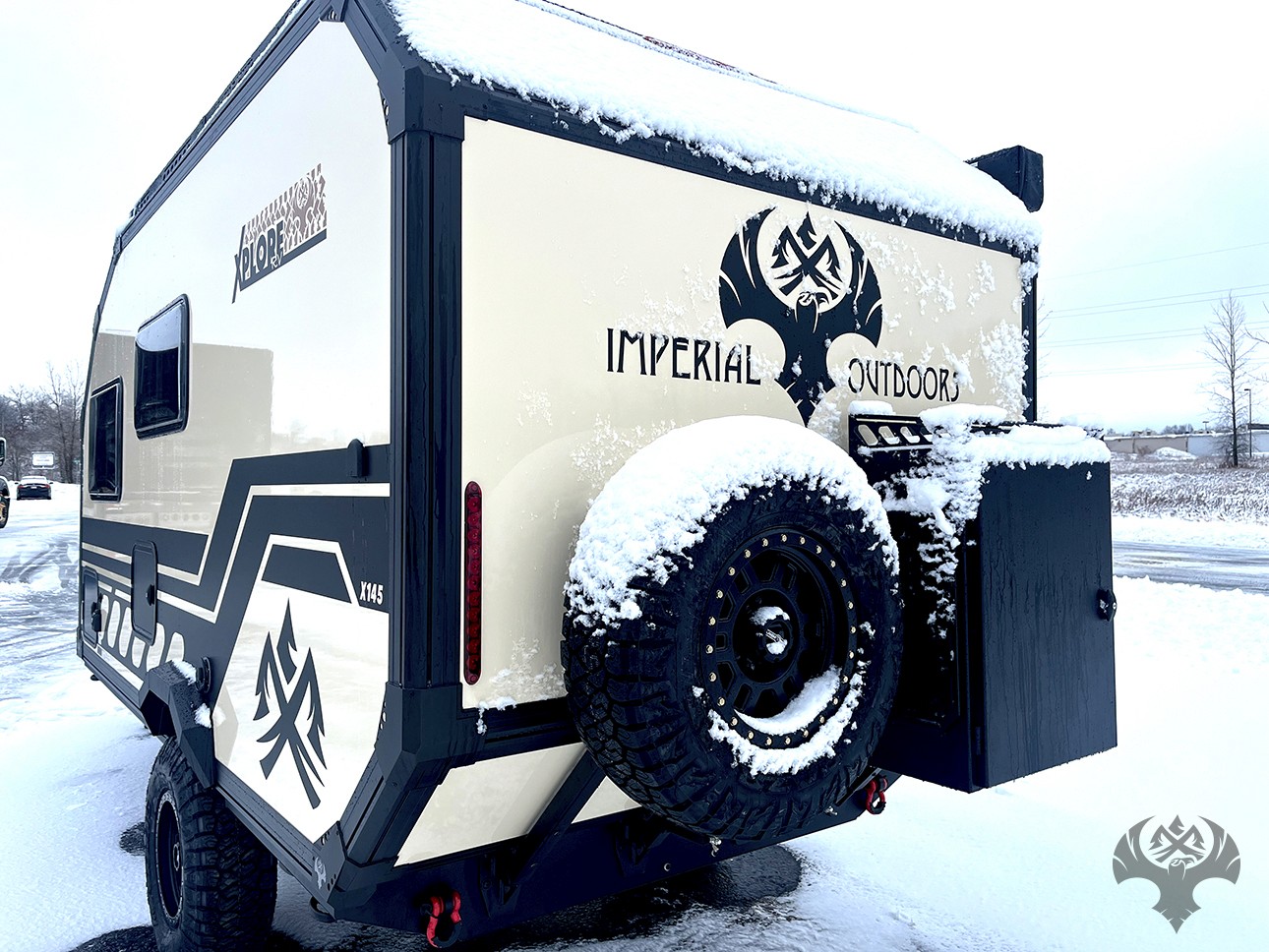

Imperial Outdoors Xplore Series X145

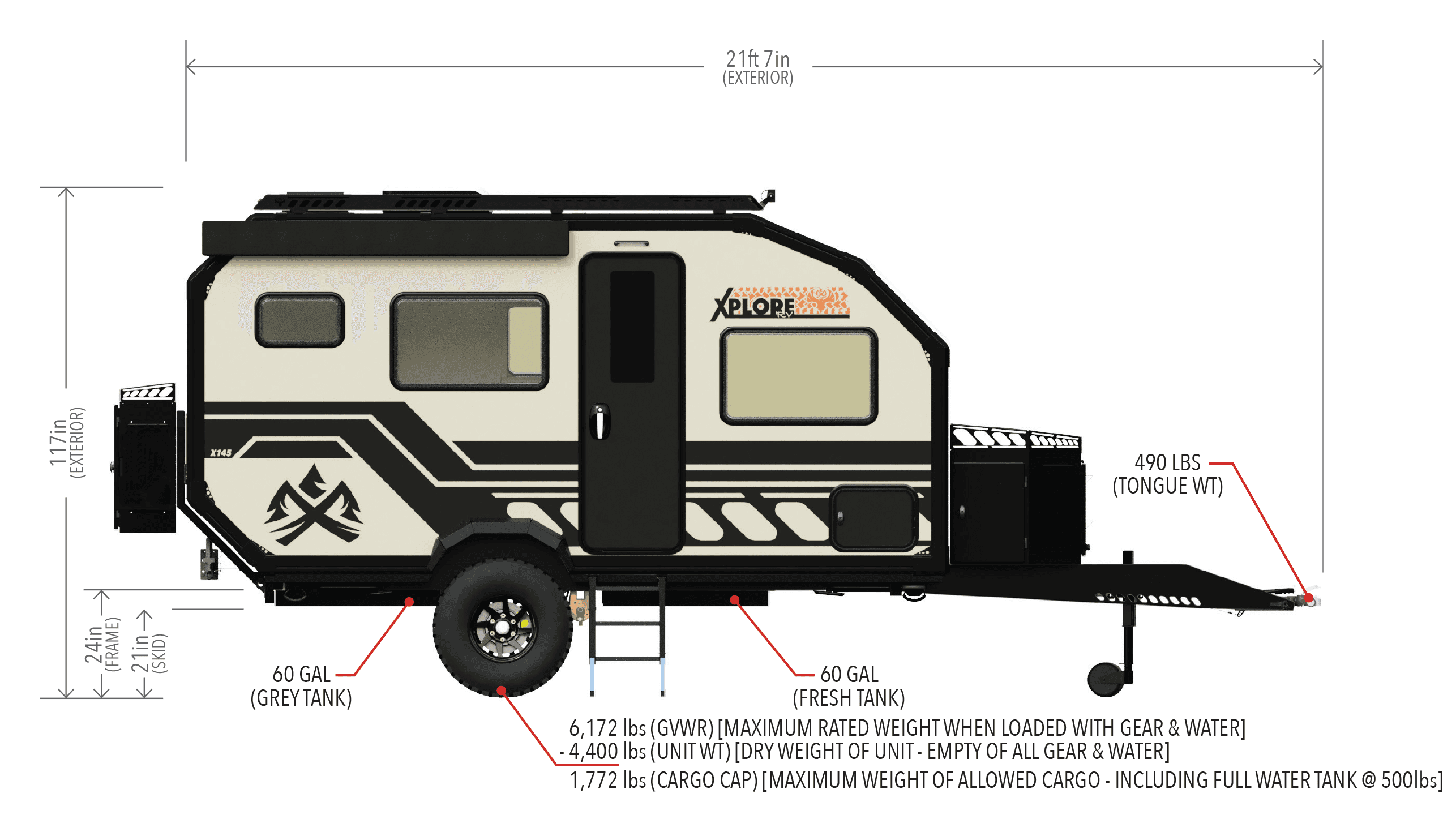

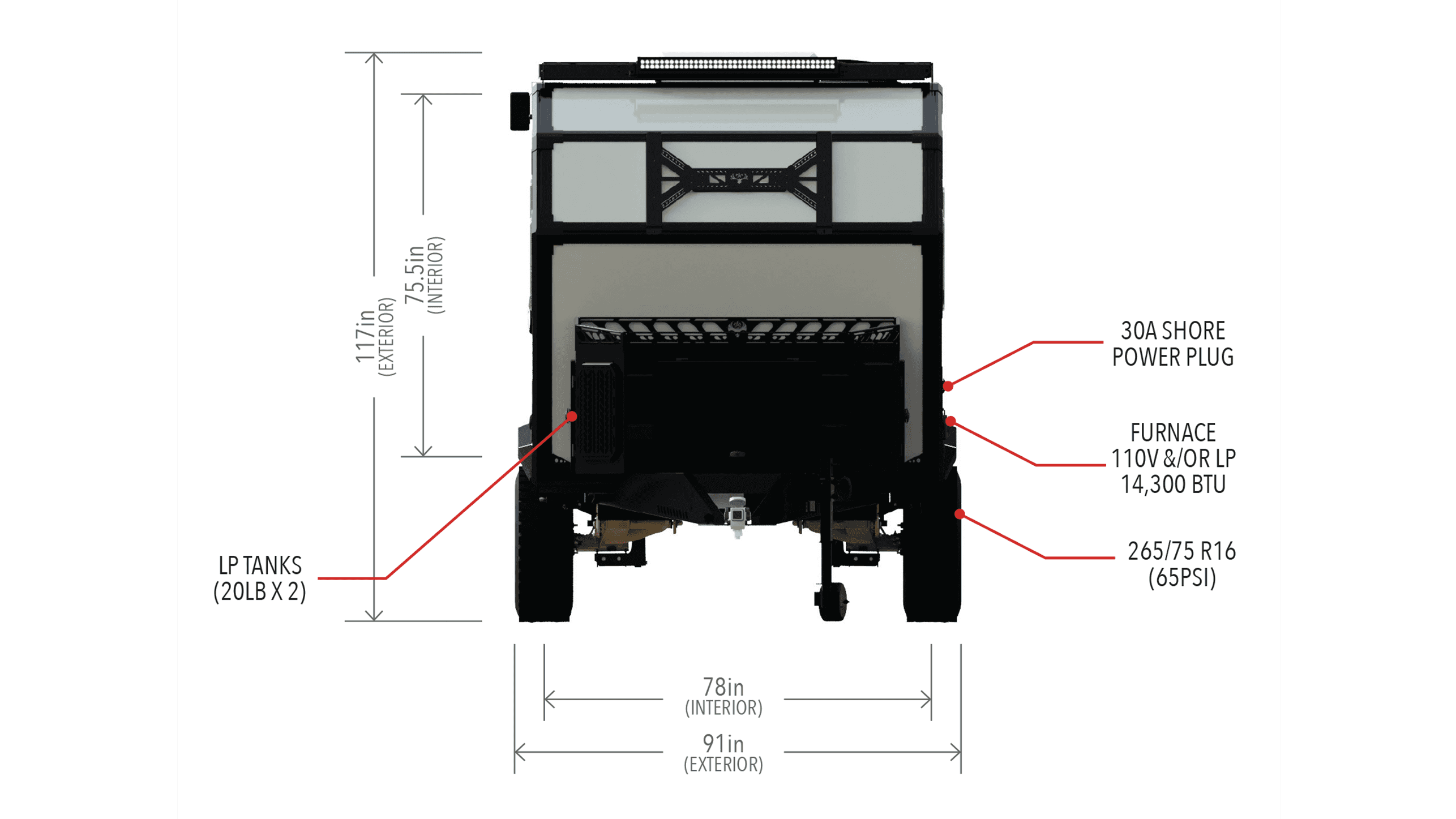

Dimensions & Weights

• Overall Length: 21 ft 7 in

• Overall Width (including fenders): 91 in (7 ft 7 in)

• Overall Height: 9 ft 9 in

• Interior Height (floor-to-ceiling): 75.5 in (6 ft 3.5 in)

• Interior Width (wall-to-wall): 78 in (6 ft 6 in)

• Ground Clearance (to skid plate): 21 in

• Ground Clearance (to frame): 24 in

• Unit Weight (Dry): 4,400 lbs

• Max Trailer Capacity (GVWR): 6,172 lbs

• Tongue Weight: 490 lbs

• Cargo Capacity: ~1,500 lbs

• Axle Weight Rating: 6,172 lbs

• Tire Size: 265/75 R16

Capacities

• Sleeping Capacity: 2+

• Fresh Water Tank: 60 gallons

• Grey Water Tank: 60 gallons

• Refrigerator Capacity: 3 cu ft

• LP Tank Capacity: (2x) 20 lb (total 40 lbs)

• Battery Capacity (Base): 360Ah Lithium (expandable up to 1,080Ah)

• Solar Output: 240W standard, up to 740W (fully equipped)

Comfort & Appliances

• Insulation: Nearly 3-inch thick composite walls, no aluminum studs (eliminates thermal bridging)

• Furnace: Truma Combi Comfort Plus, 14,300 BTU

• Air Conditioner: Dometic RTX 12V, 6,824 BTU

• Heated Water Tanks: Yes, with 4x 12V/80W thermostat-regulated tank heaters

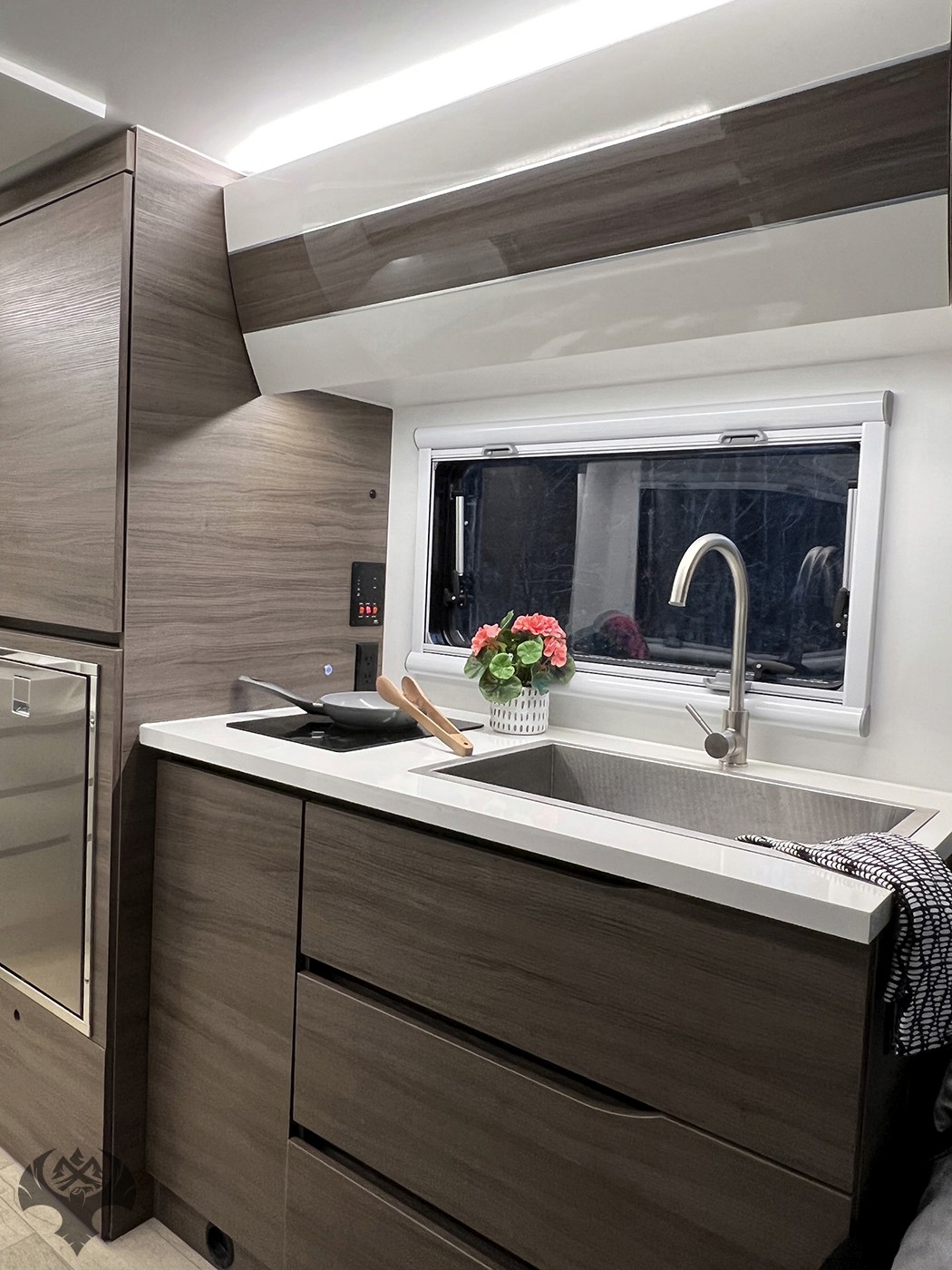

• Cooktop: 120V True Induction Single Burner

• Fridge: IsoTherm CR65 12V

• Bathroom: Full bathroom with shower and Laveo dry flush toilet (no black tank)

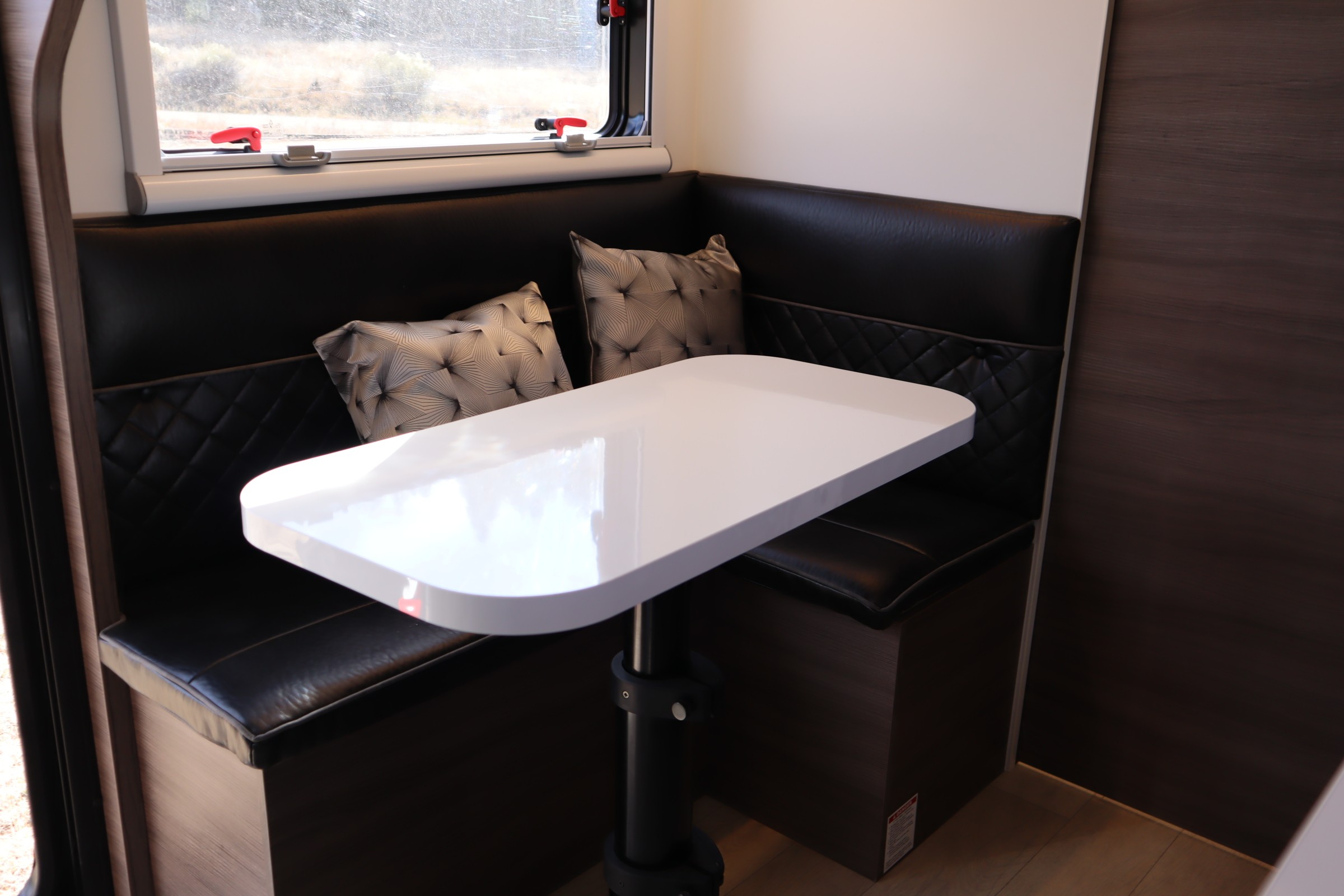

• Dinette: Convertible for additional sleeping space

• Bed: East/West RV Full-sized bed

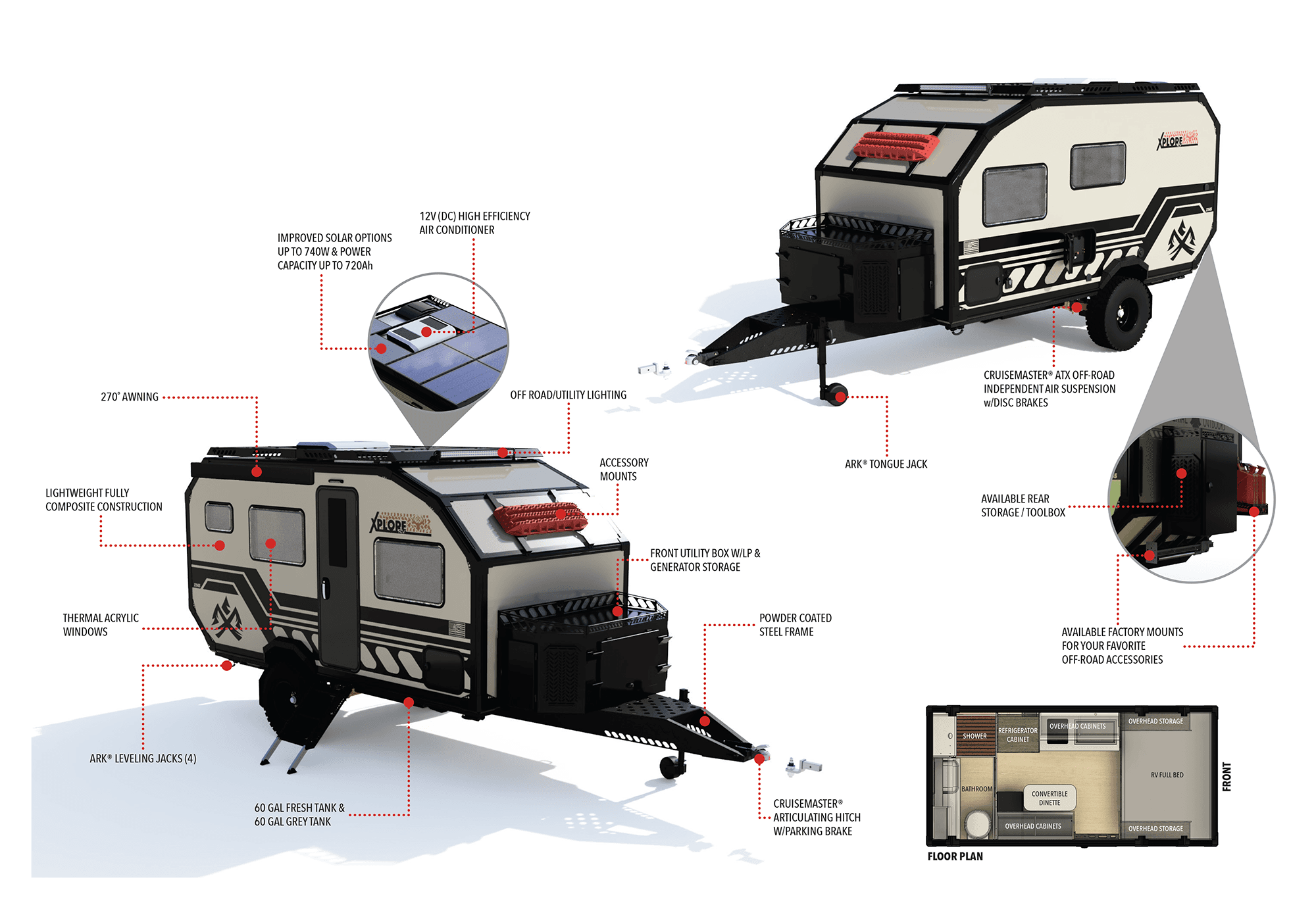

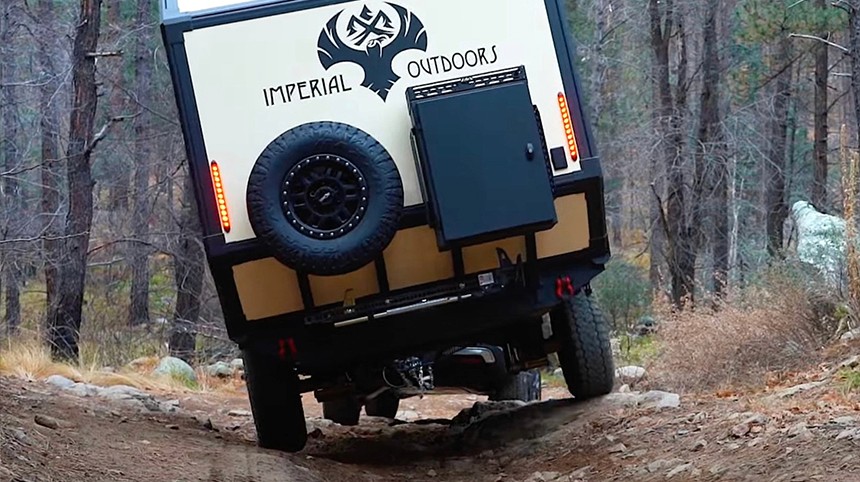

Chassis & Suspension

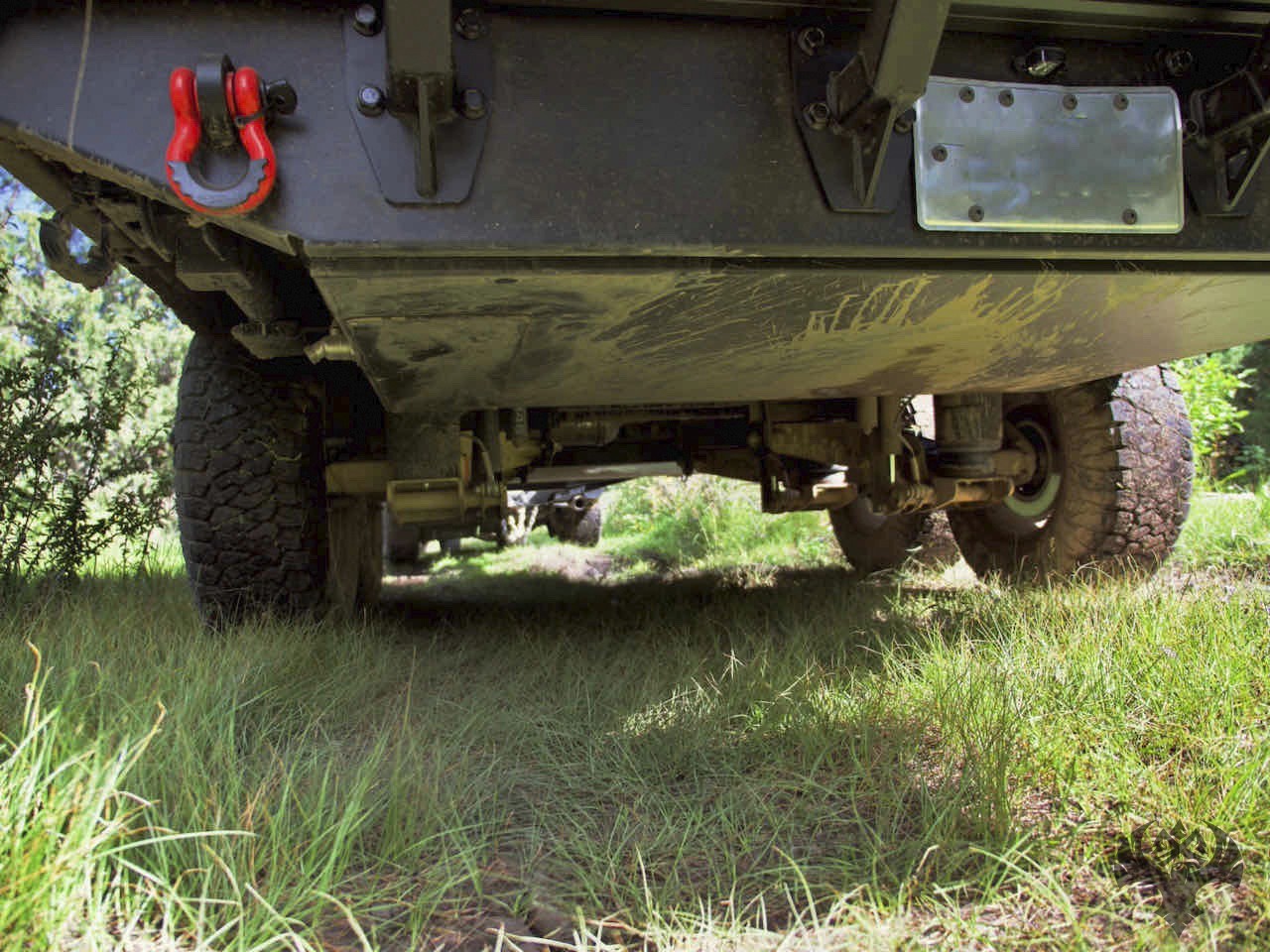

• Frame: Off-road reinforced, coated steel with full skid plates and D-Ring recovery points

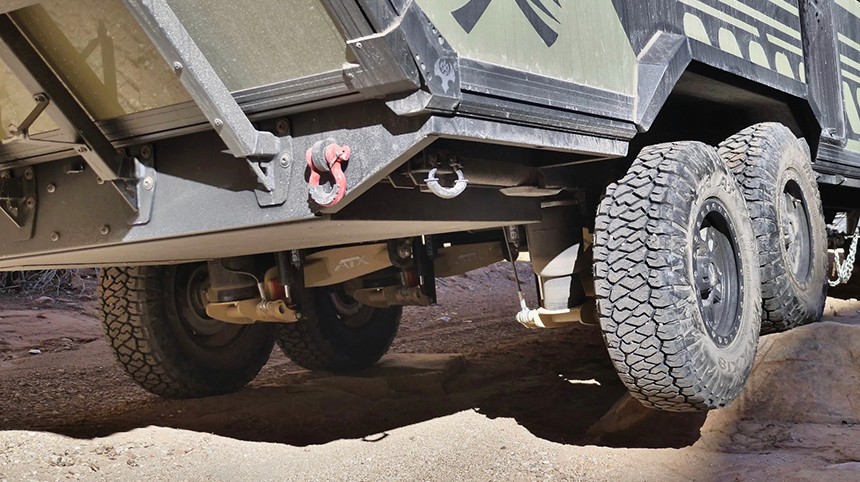

• Suspension: Cruisemaster ATX independent with airbags, disc brakes, and parking brake

• Hitch: Cruisemaster DO45 articulating hitch

Off-Grid Features

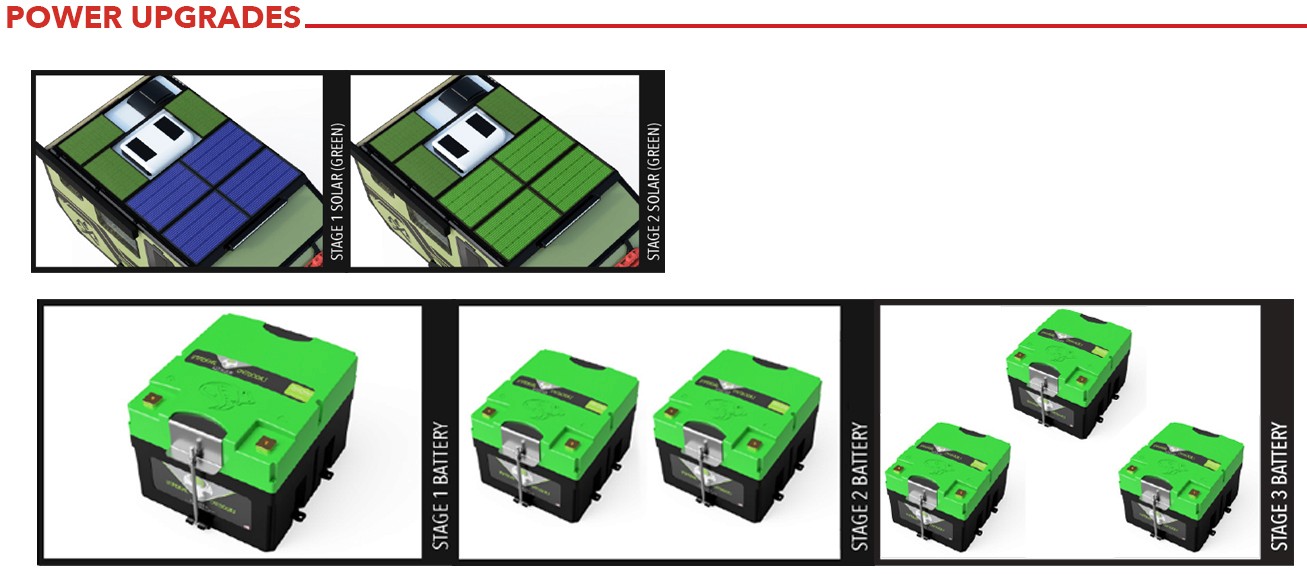

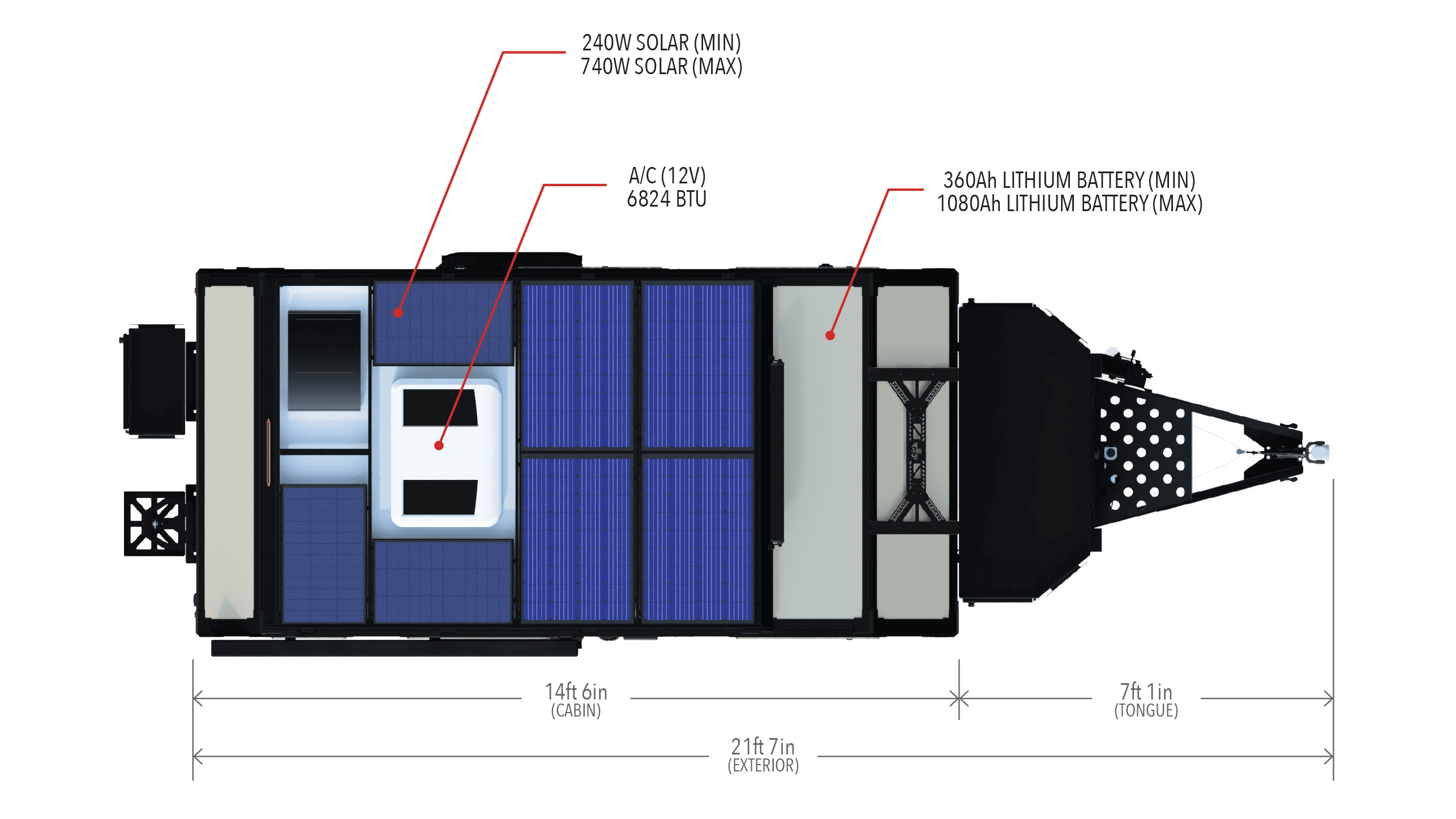

• Solar: Up to 740W (7 glass panels)

• Lithium Battery: Up to 1,080Ah (Stage 3 Power)

• Inverter: 2,000W with monitor panel

• All appliances except cooktop run on 12V power

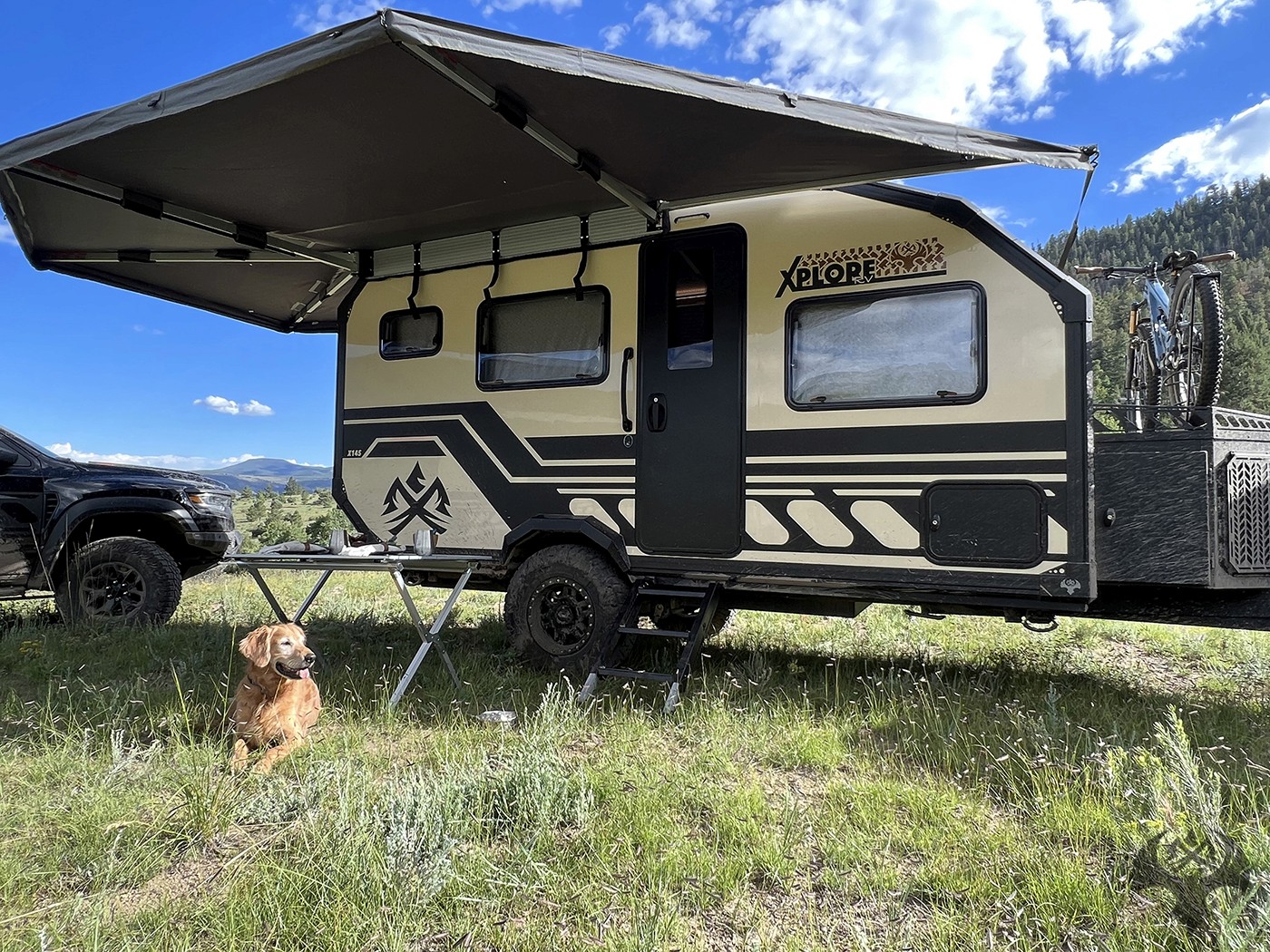

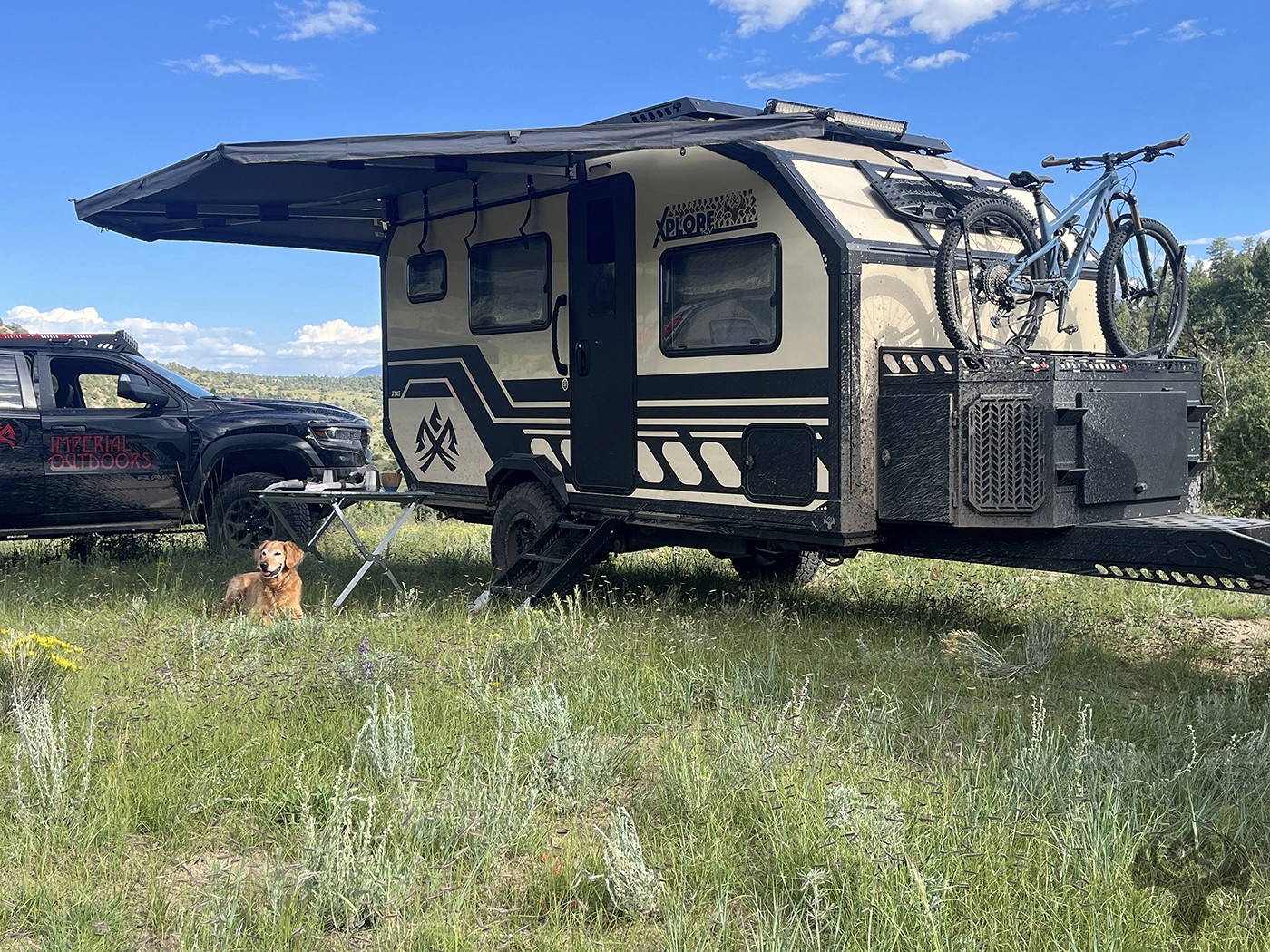

• Exterior: 270˚ awning, exterior pass-through storage, LED perimeter and rock lighting, MaxxAir roof ventilation, custom roof rack, on-board air compressor, outdoor shower hookup

Other Features

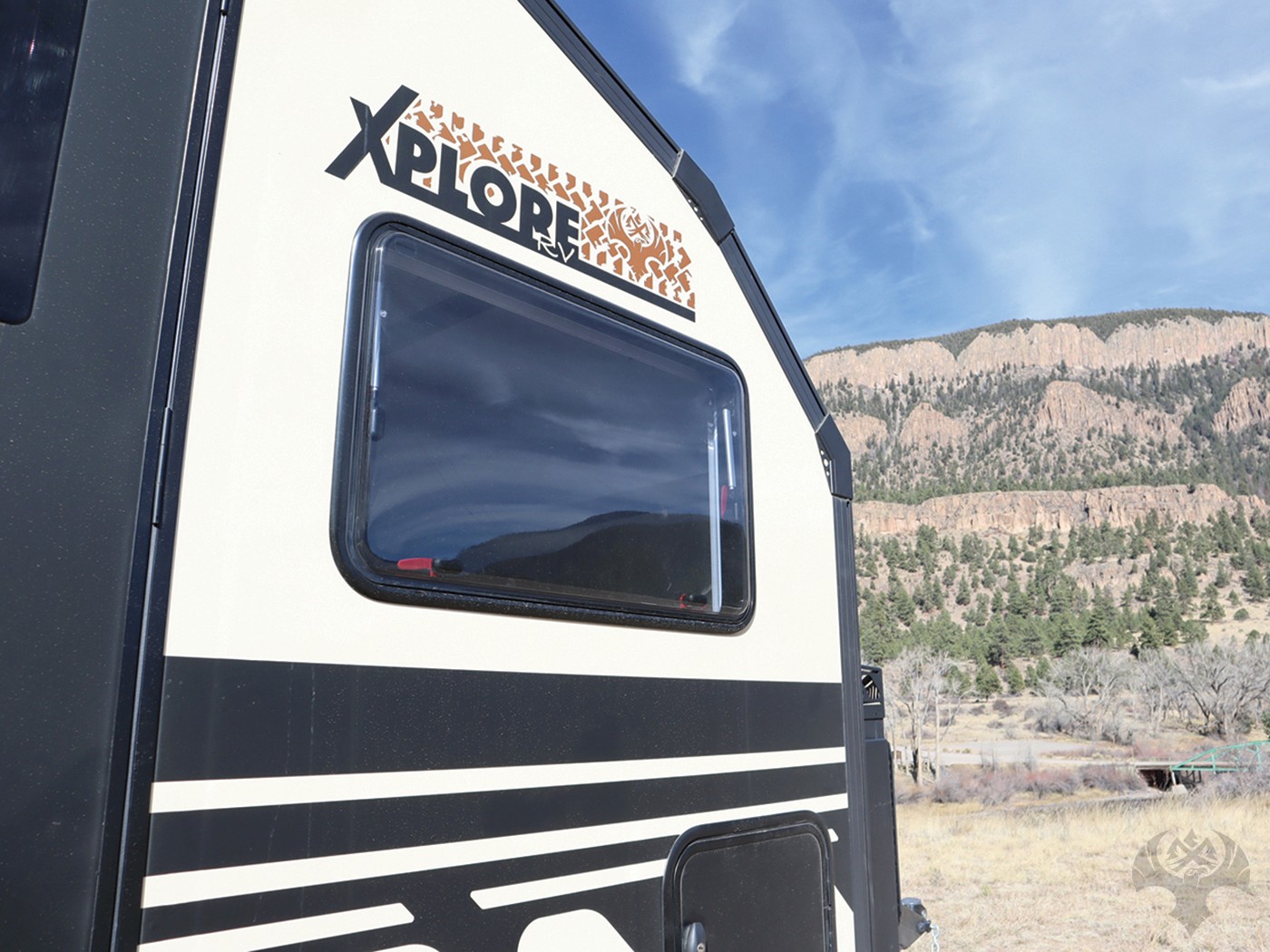

• Windows: Eurovision dual-pane polycarbonate (thermal acrylic)

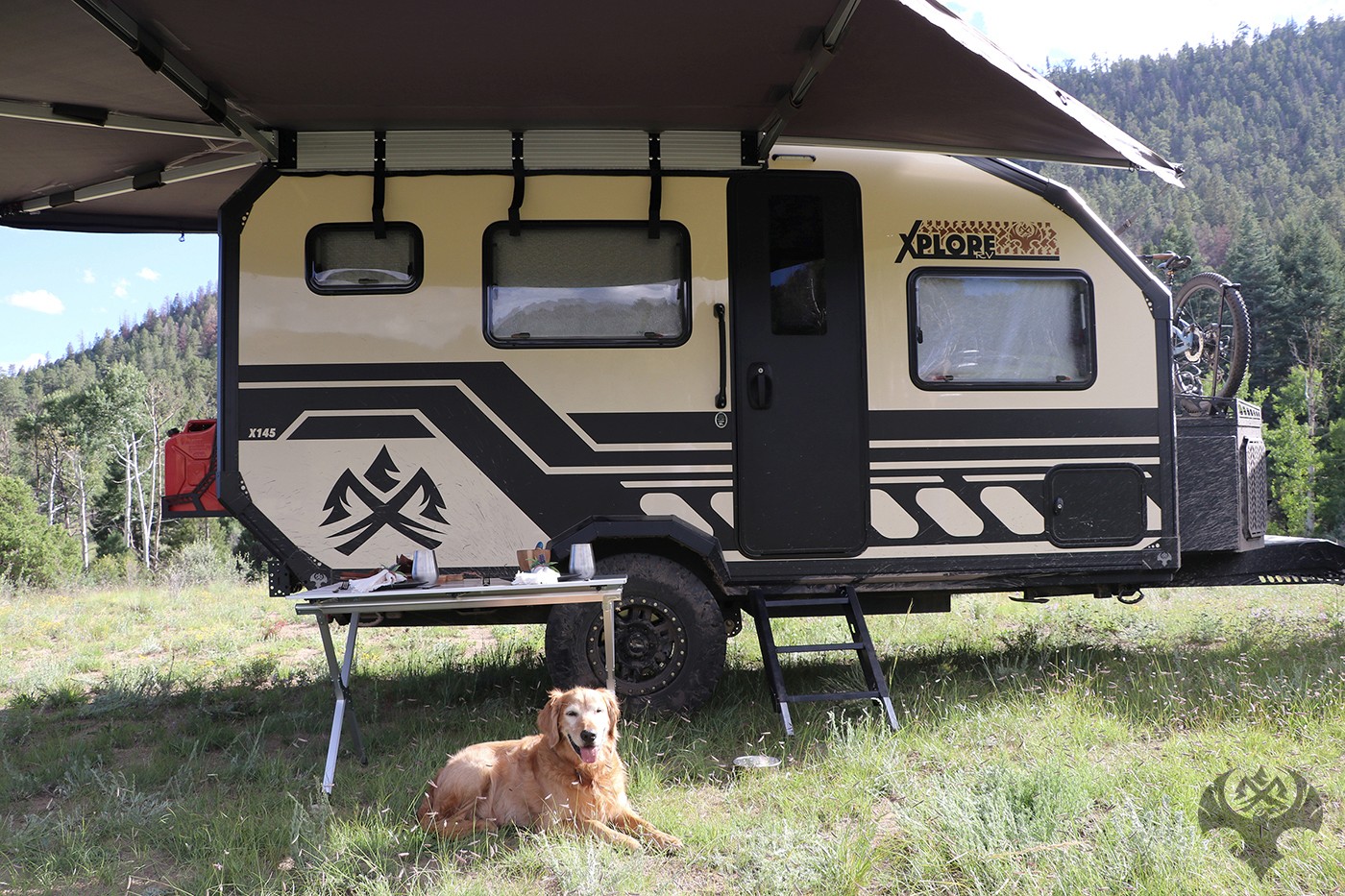

• Awnings: 1 (270˚ wrap-around)

• Bluetooth Speaker, USB Charging Ports, 120V Outlets

• RVIA Certified
