SylvanSport GO Pop Up Camper

Specs & FAQs

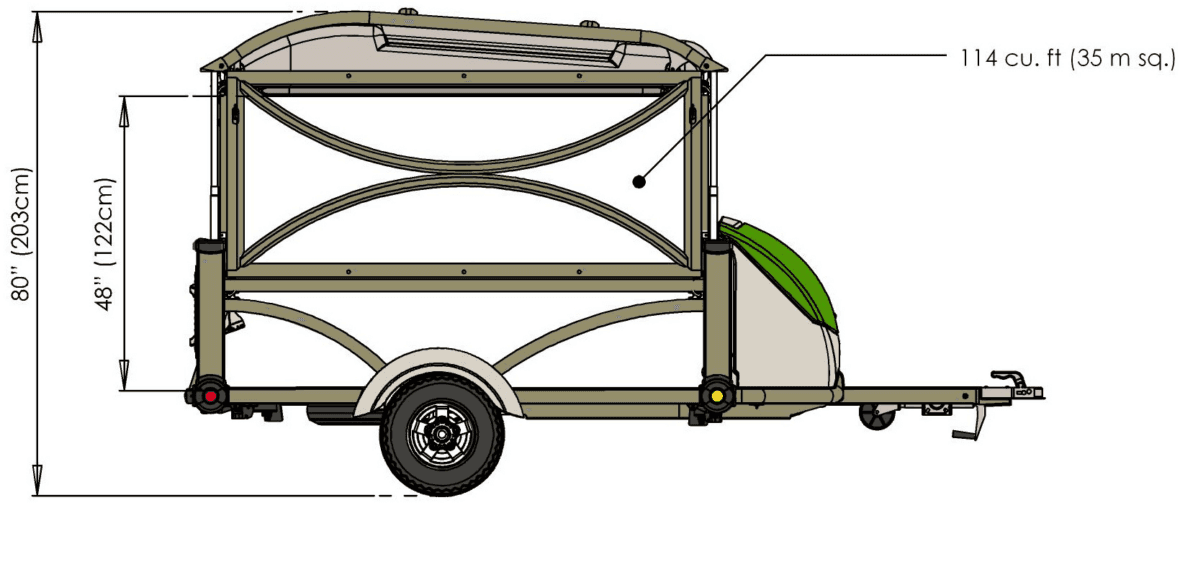

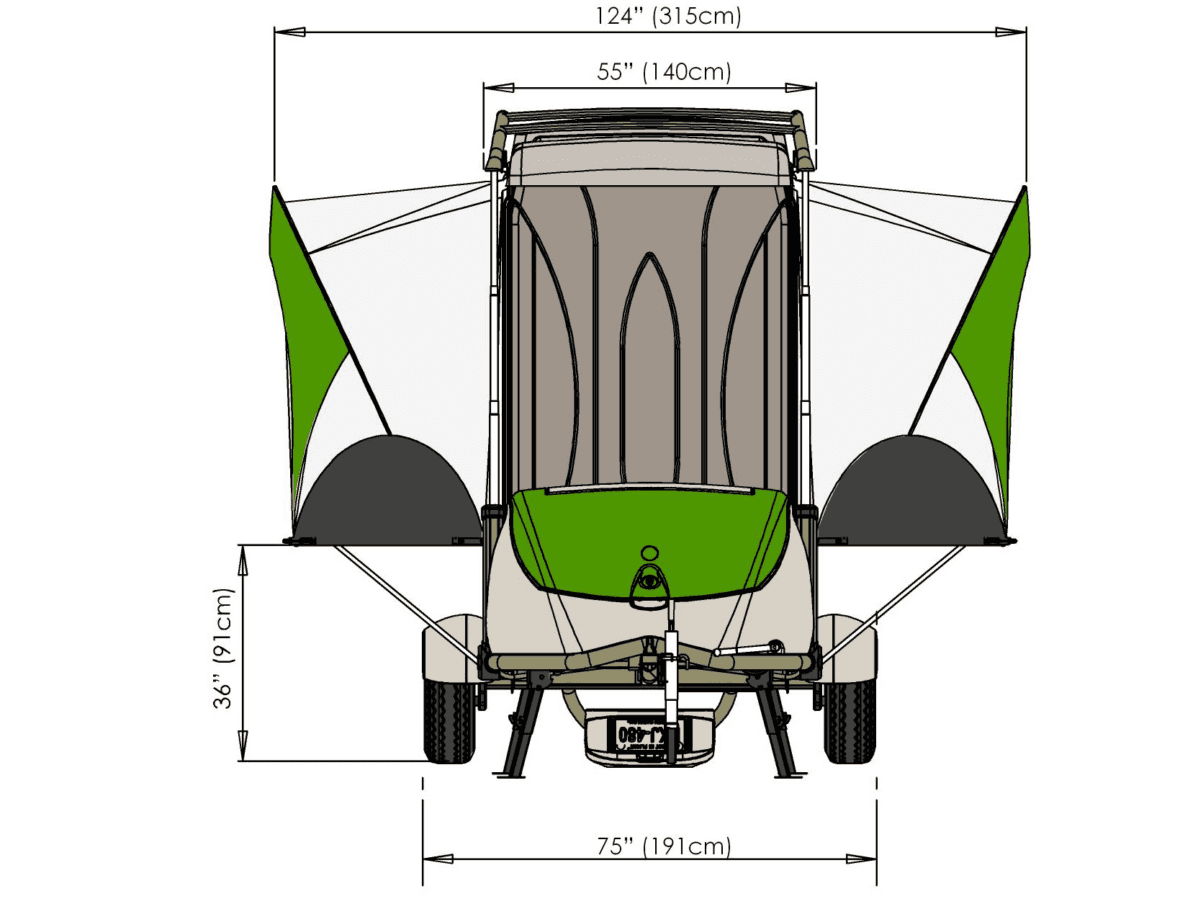

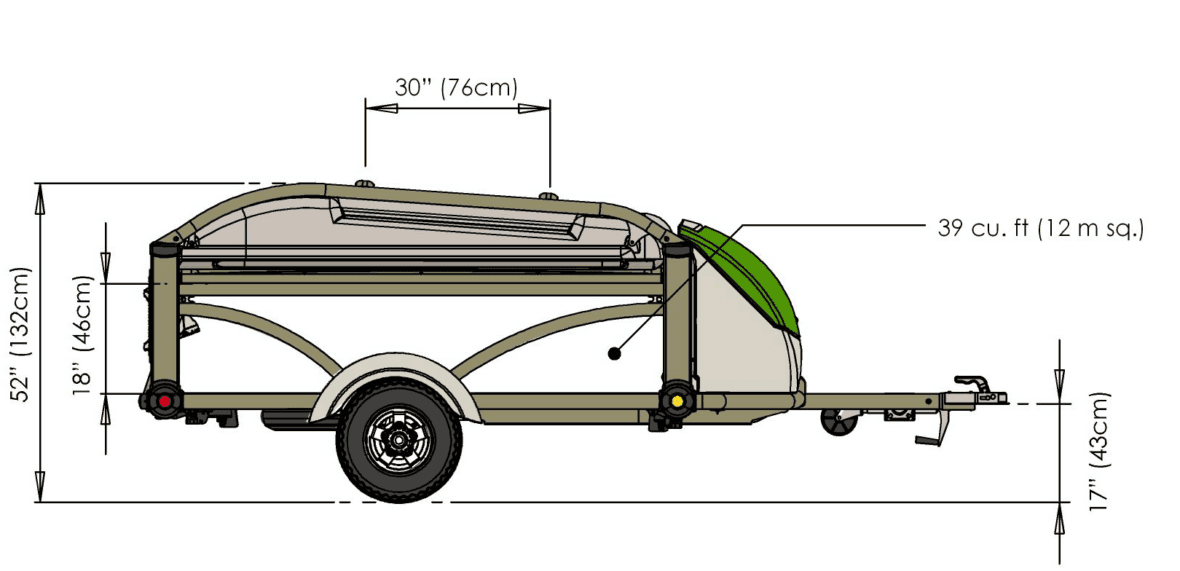

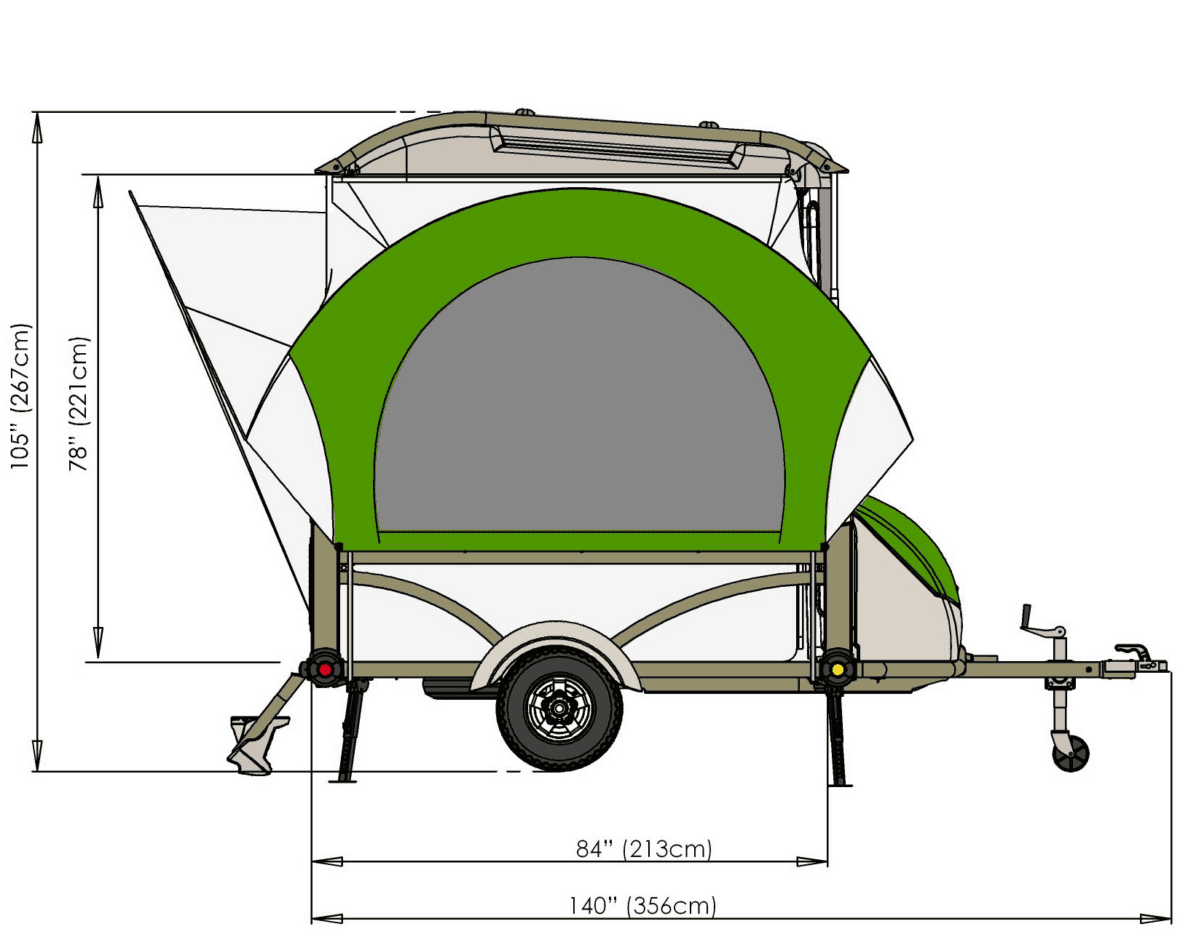

Overall Dimensions & Weight

• Overall Dimensions (L × W × H): 140″ × 75″ × 52″

• Ground Clearance: 13″ (33 cm)

• Dry Weight: 840 lbs (381 kg)

• GVWR: 1,650 lbs (748 kg)

Hitch & Coupler

• Receiver Compatibility: 1-1/4″ or 2″ receiver

• Coupler: 2″ ball

• Ball Height: 17″ (to center)

• Handle: Ergonomic with one-step engagement

Carrying Capacity

• Total Capacity: 810 lbs (367 kg)

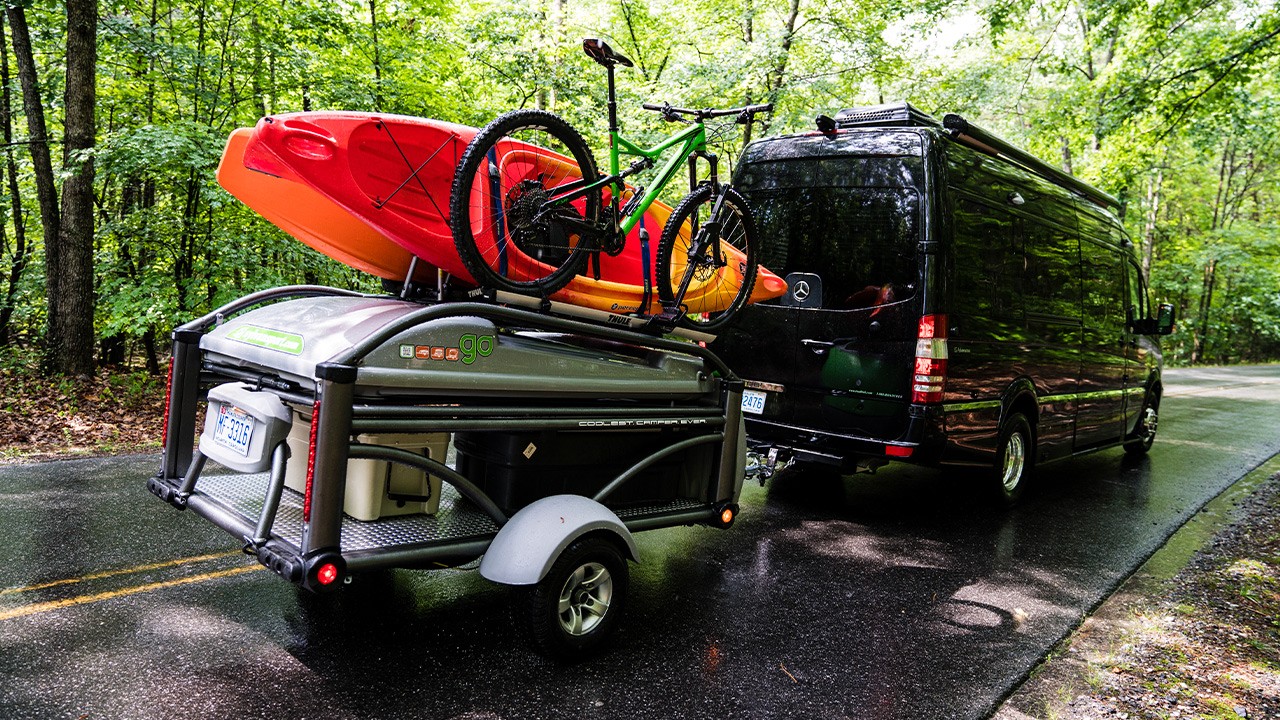

• Rack System Capacity: 165 lbs (75 kg)

Electrical

• Standard flat 4-pin connector plug

• Waterproof, marine-grade LED lighting system

Frame & Tongue

• Custom 6000-series aluminum extrusions

• TIG welded construction

• Two-step powder-coat finish

• Tongue Weight (Dry): 85 lbs (39 kg)

• Hardened steel tongue

• Bolt-on swivel trailer jack

• Zinc-coated with 6″ caster wheel

Axle & Fenders

• Dexter torsion axle

• Self-lubricating hubs

• Rotomolded polyethylene fenders

• Integrated tag holder

• Converts into entry step

• Detachable for longer cargo

Wheels & Jacks

• Bolt Pattern: 5 on 4-1/2

• High-quality cast aluminum wheels

• Four corner-mounted stabilizer jacks

Tires

• Tire Model: Kenda Loadstar 205/65-10

• Speed Rating: 81 mph

• Load Range: C (1,100 lbs per tire)

Spare Tire

• Kenda Loadstar 4.80-12

• Galvanized steel wheel

• Full-size spare, mounted below deck
