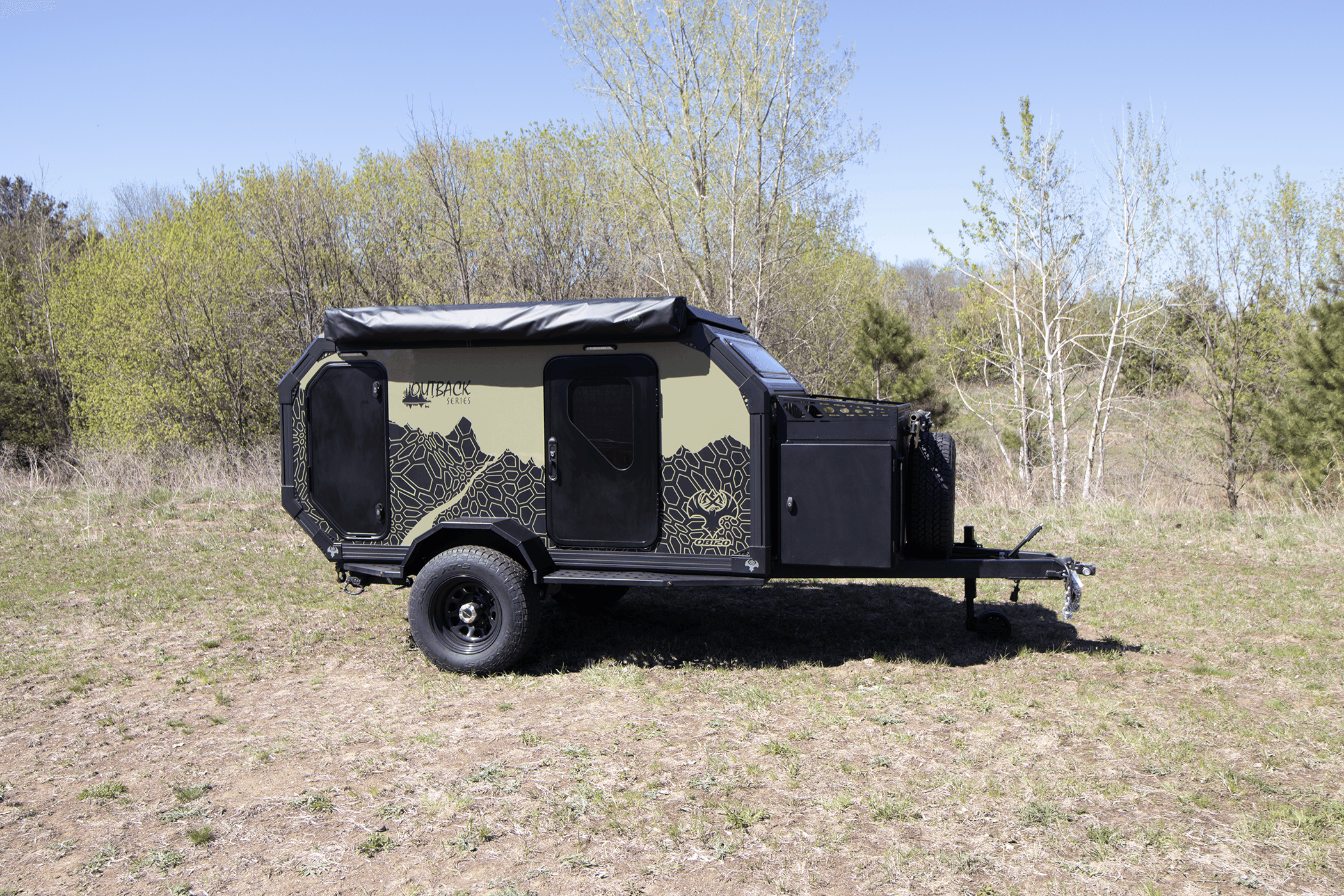

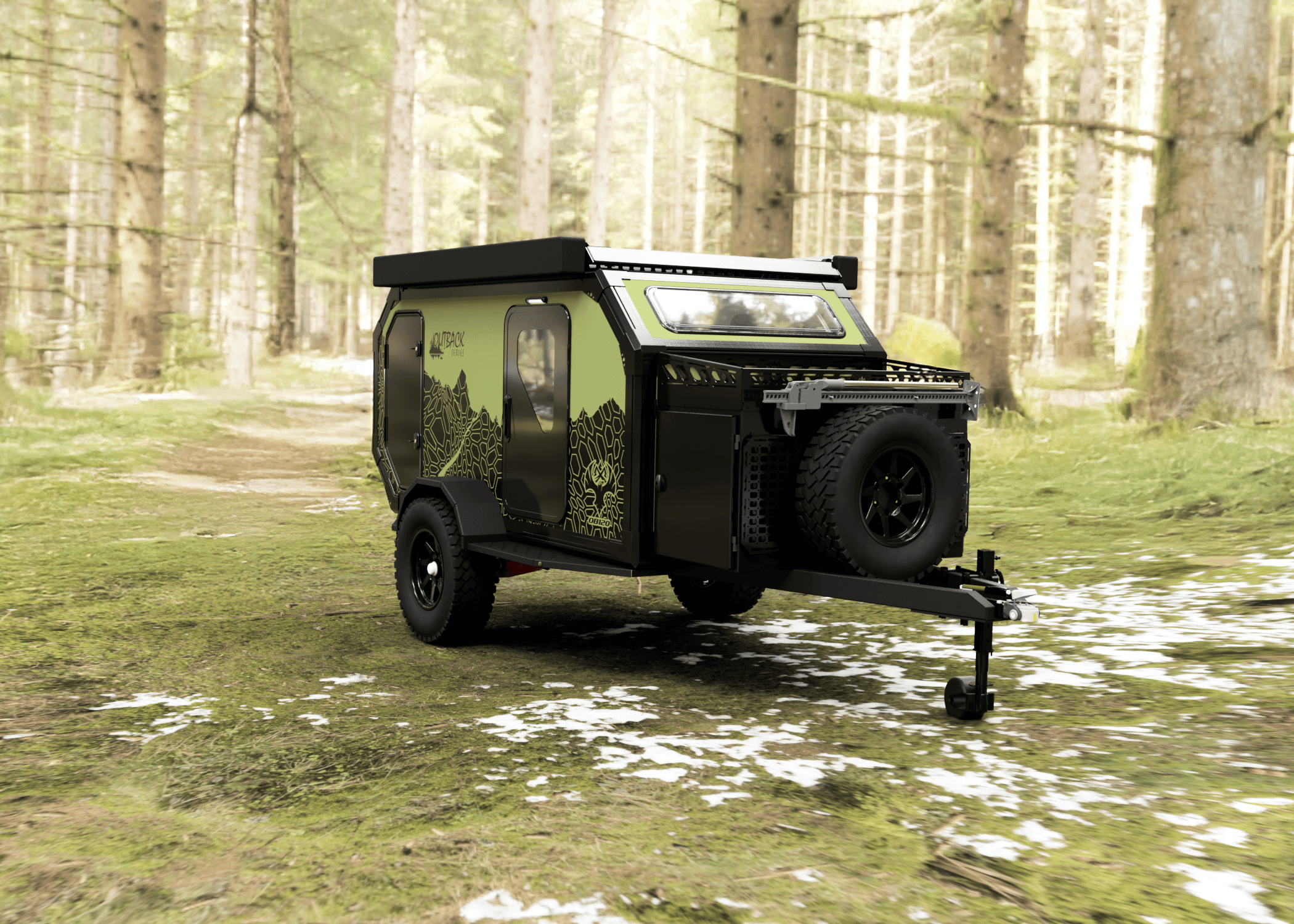

Outback OB120 Trailer

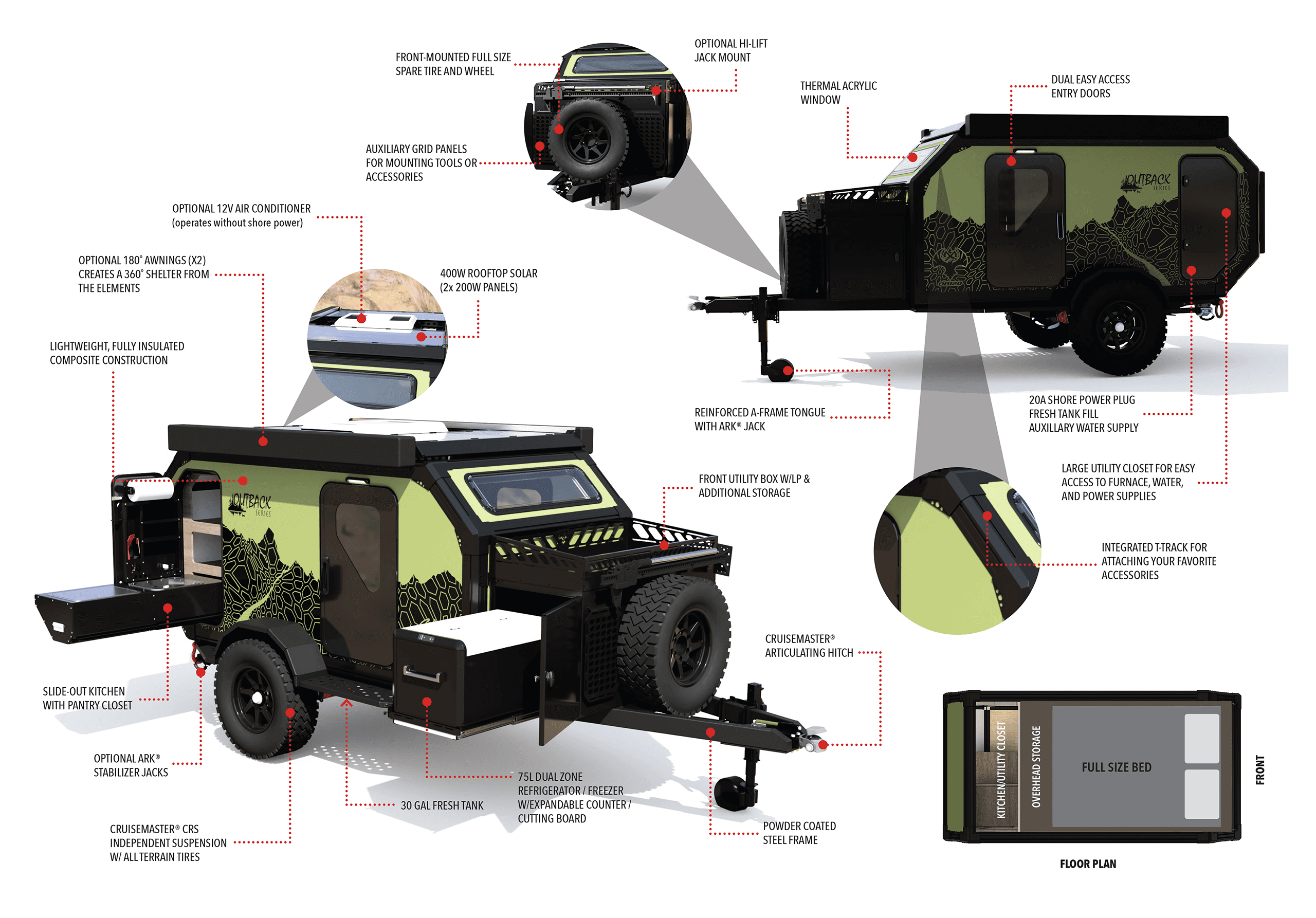

The Outback OB120 from Imperial Outdoors is designed for those who crave adventure beyond the beaten path. With its robust Cruisemaster CRS independent suspension, 32-inch all-terrain tires, and a tough steel chassis, this trailer can handle rough terrain and tight spots with ease. It’s lightweight and easy to tow, making it accessible for a range of vehicles—not just full-size trucks. The OB120 extends your living space outdoors with a 360˚ awning and a thoughtfully designed outdoor kitchen, while its nearly 3-inch thick insulated walls, Truma Combi furnace/water heater, and heated water tank ensure comfort in extreme cold, down to -40˚. A rooftop 12V air conditioner keeps things cool in the summer, making this trailer a true four-season companion for any adventure seeker.

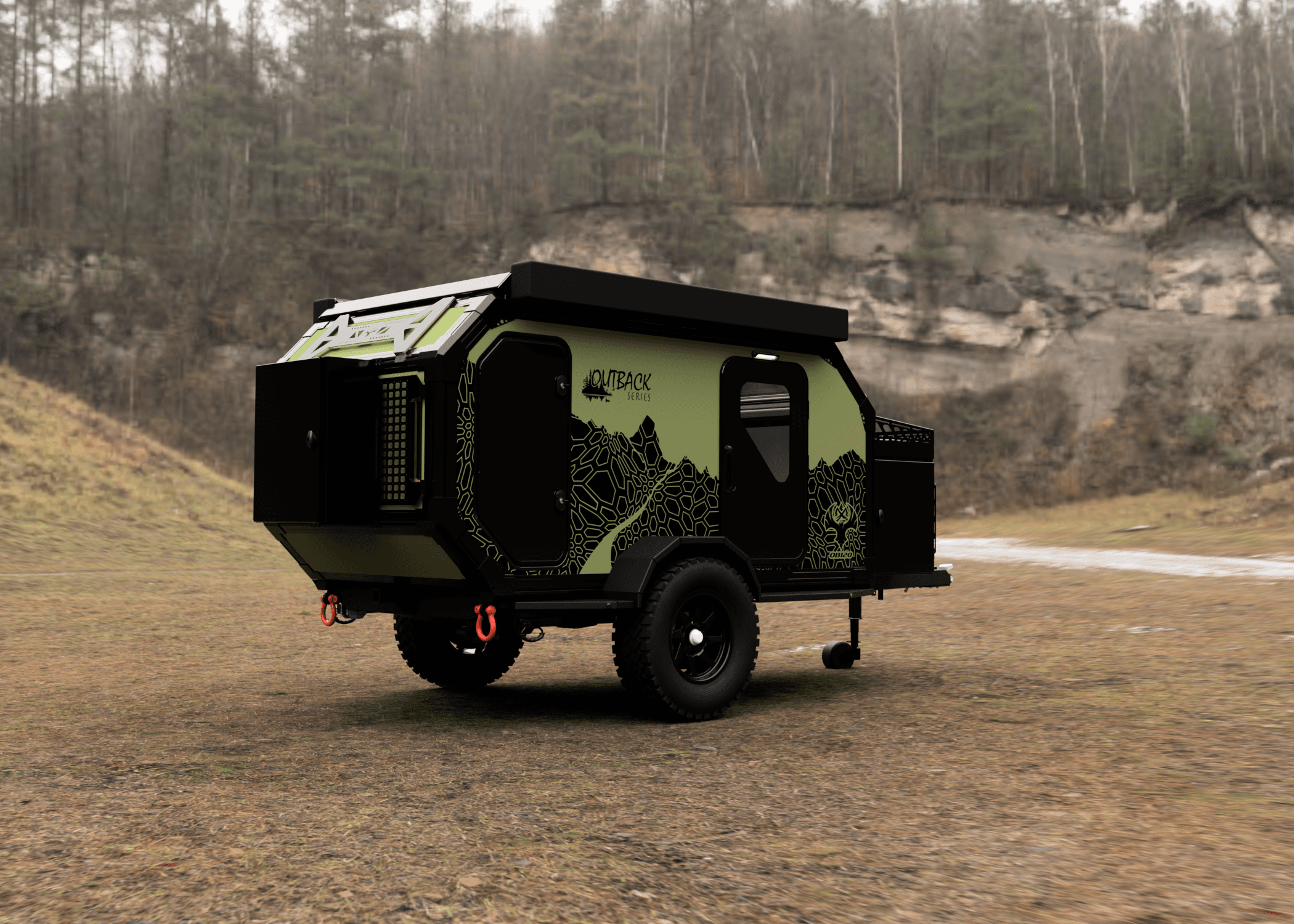

Off-Road Capable

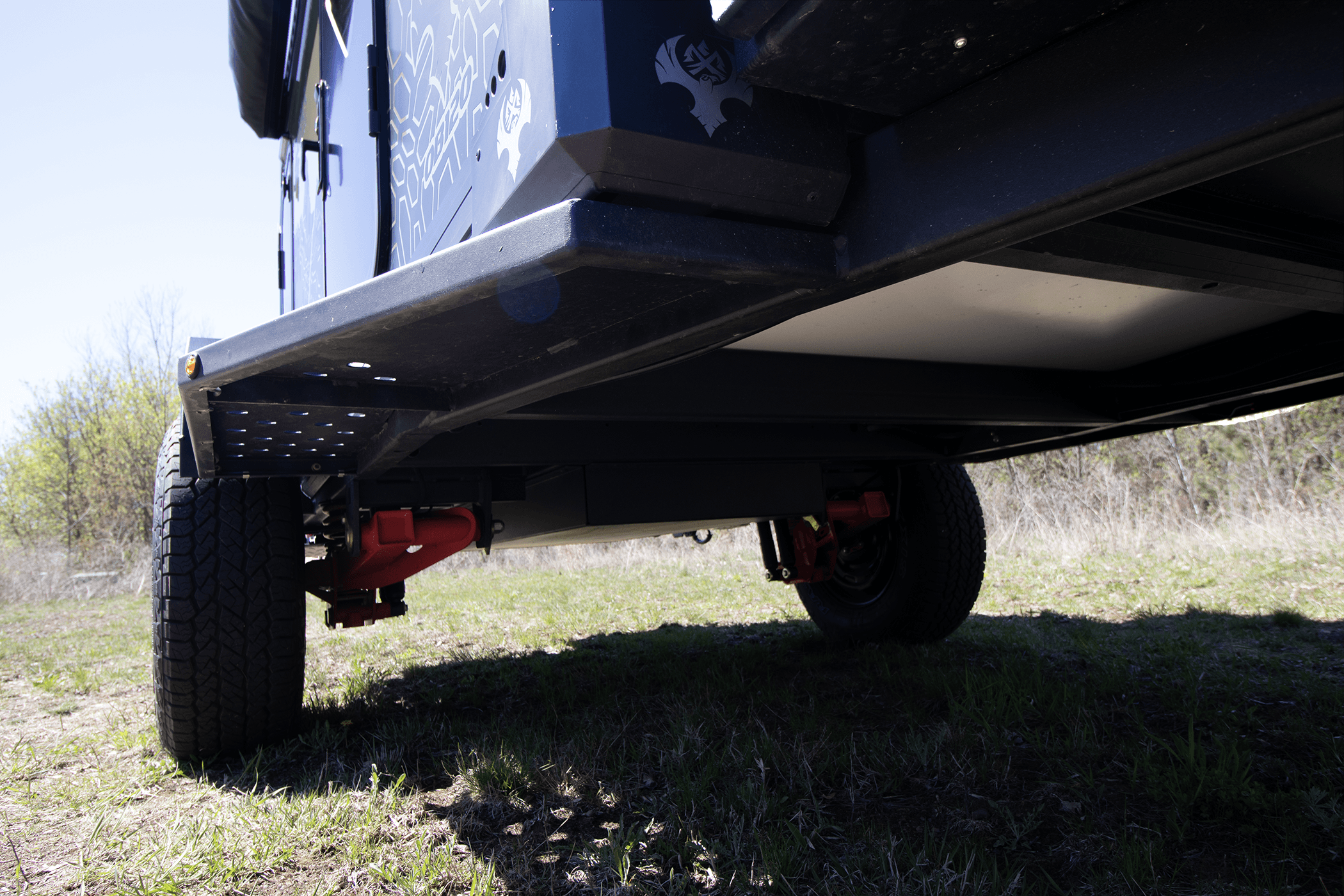

The Outback series will go where most trailers simply can’t. The Cruisemaster CRS independent suspension and 32 inch all-terrain tires mounted to a rugged steel chassis provides a tough, stable platform to get you even further into the wilderness! With a small footprint and low center of gravity, the Outback series can get in and out of those tight spots with ease! The Cruisemaster DO35 articulating hitch ensures safety and peace-of-mind through rough conditions.
Tow-ability
Wether you’re a Jeep enthusiast, or a die-hard Toyota fan, the Outback is the perfect option for any adventure addict! This small adventure trailer is capable of doing big things without needing a full-size truck to safely tow it. Despite it’s small size, the Outback is a well-mannered adventure trailer that doesn’t fall short in function or quality.

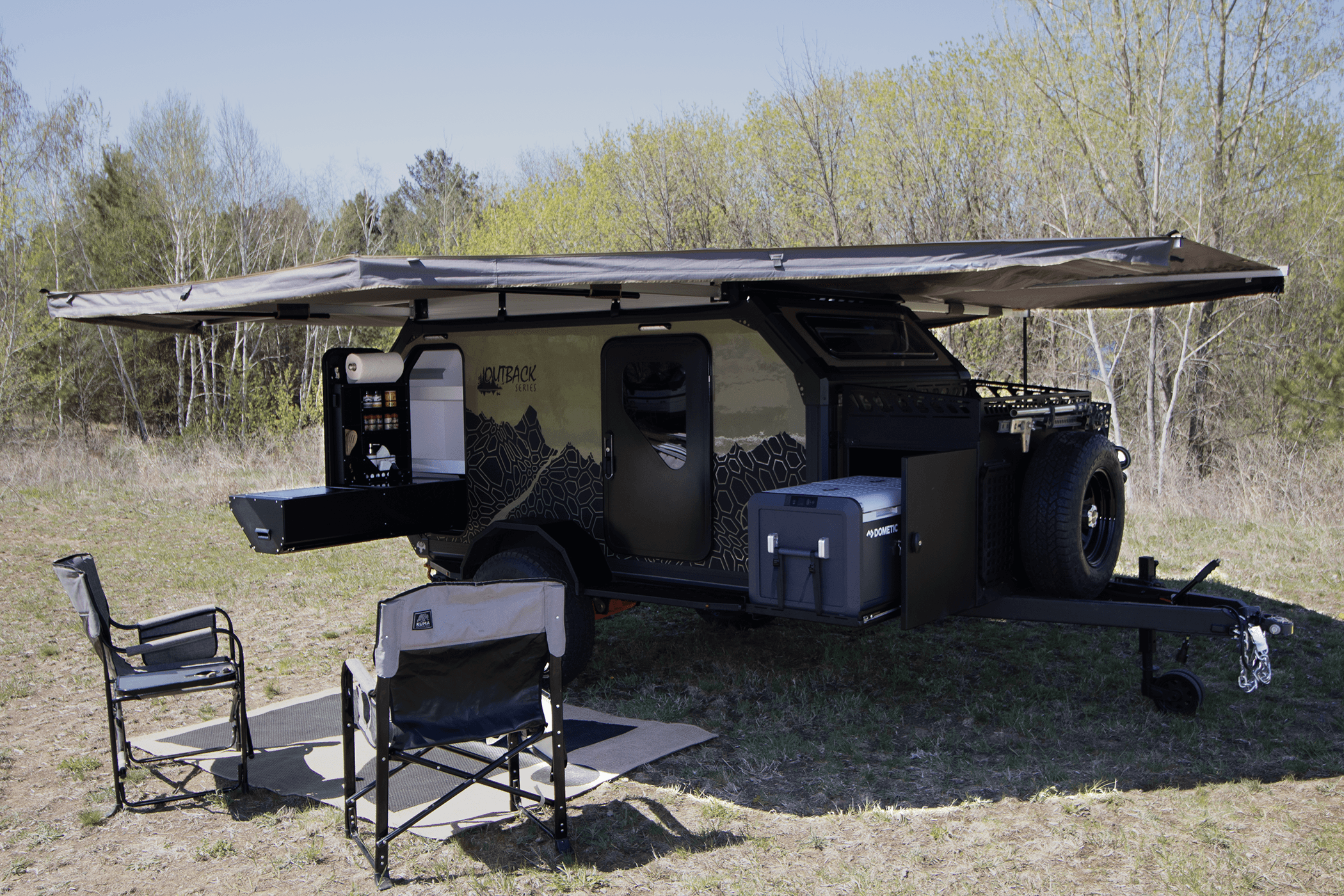

Outdoor Function

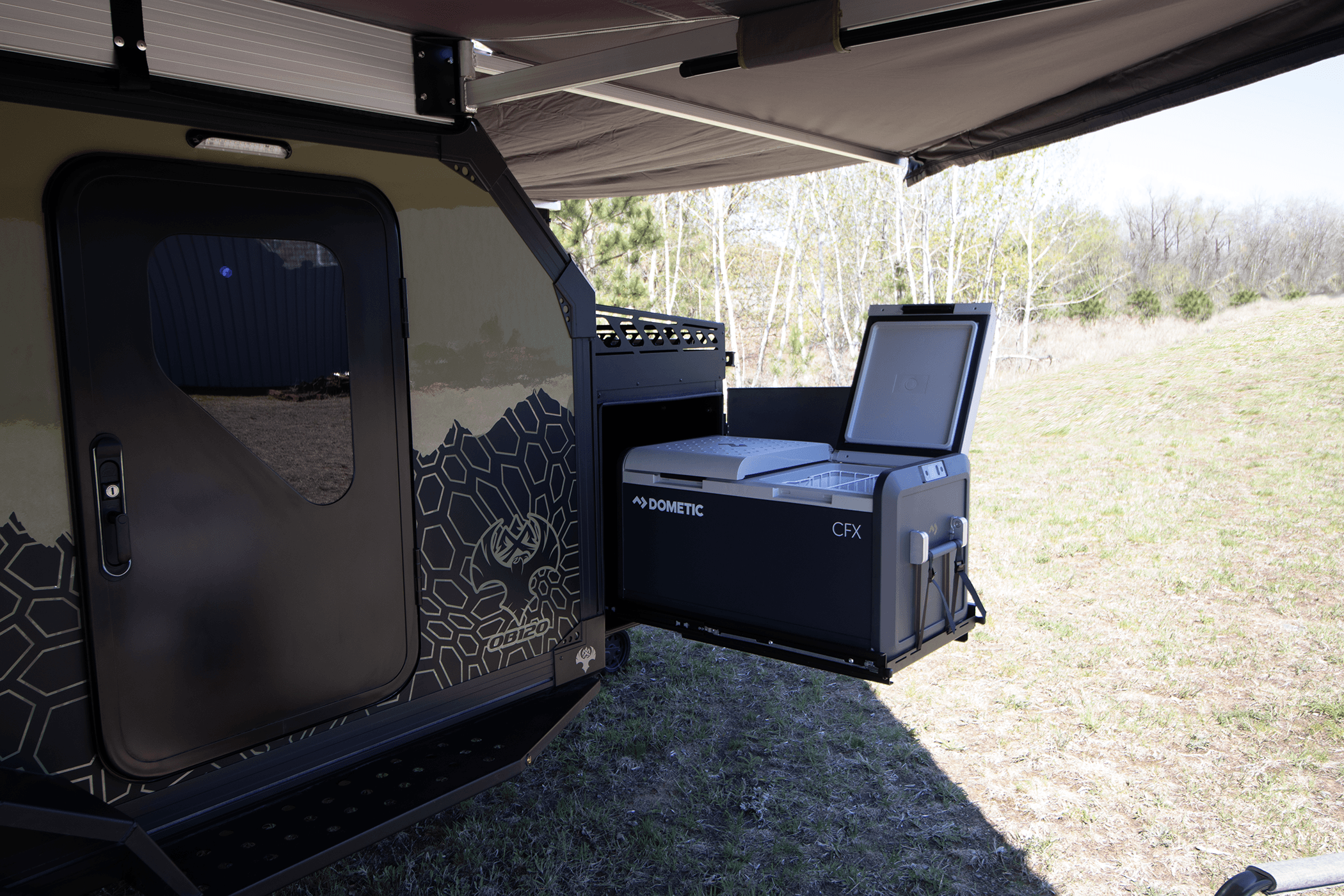

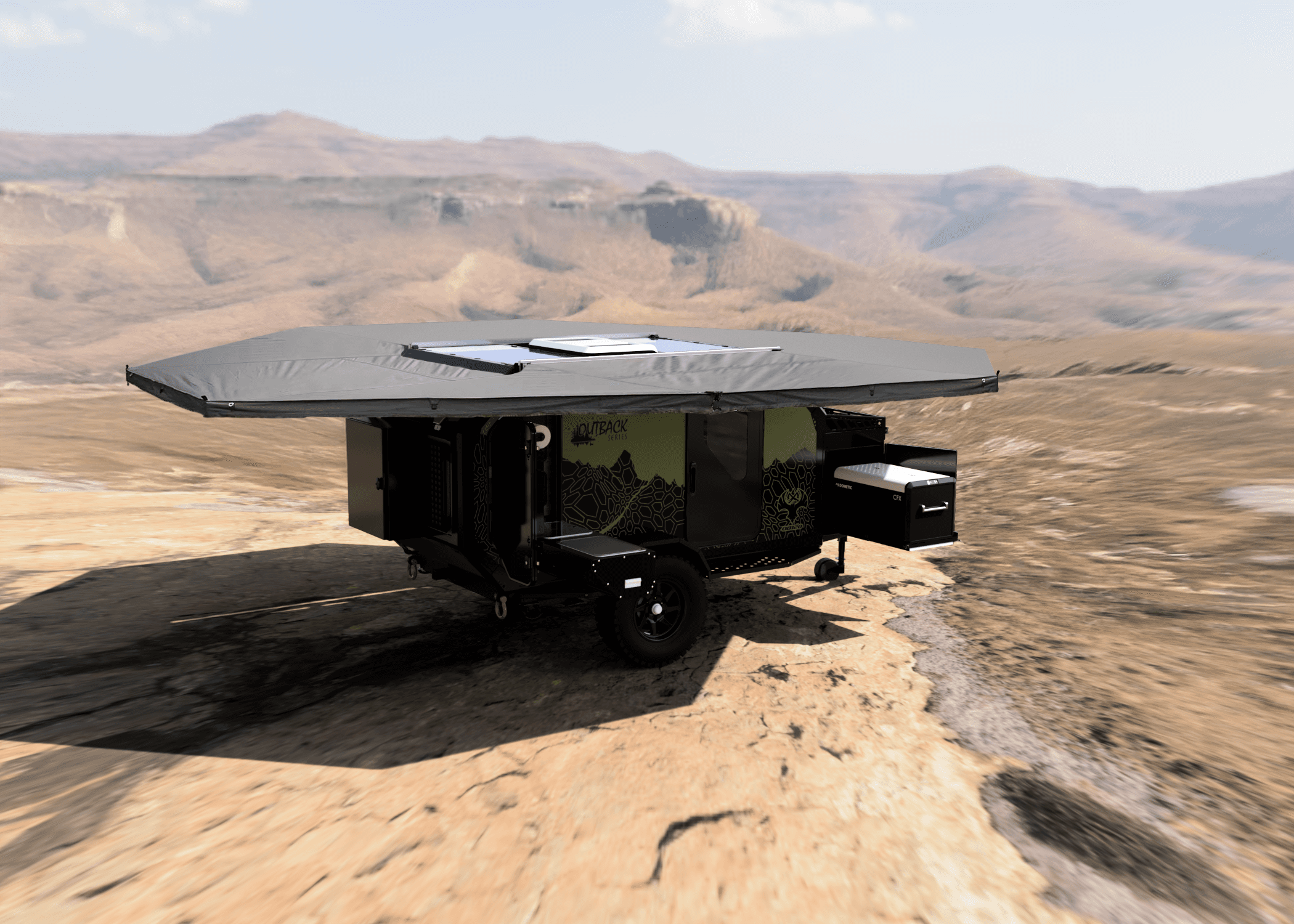

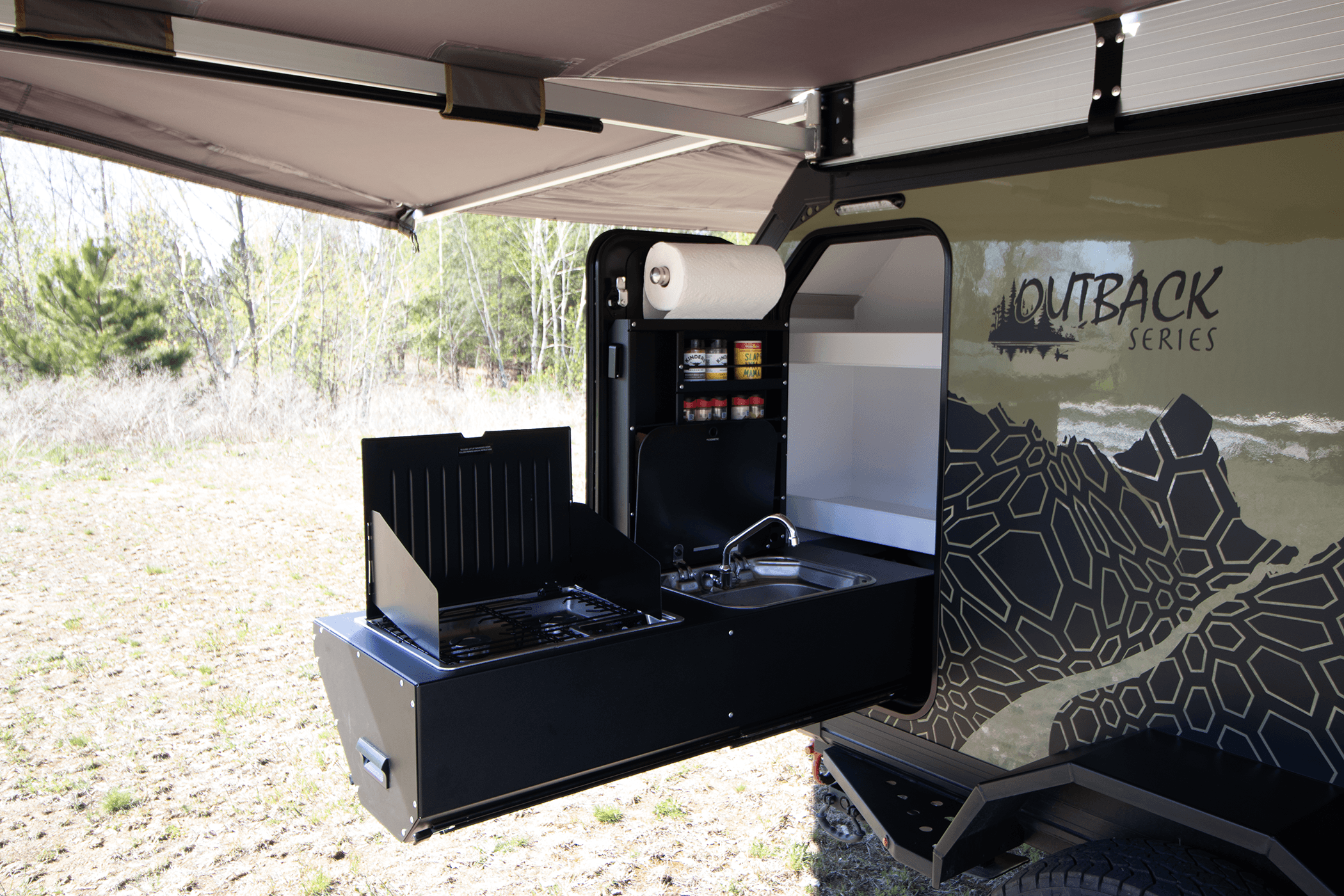

Extend your functional living space outside! The available 360˚ awning provides shelter while you’re cooking or just relaxing outdoors. The outdoor kitchen is designed to give you a convenient place to cook your meals and store your food supplies away from the elements.

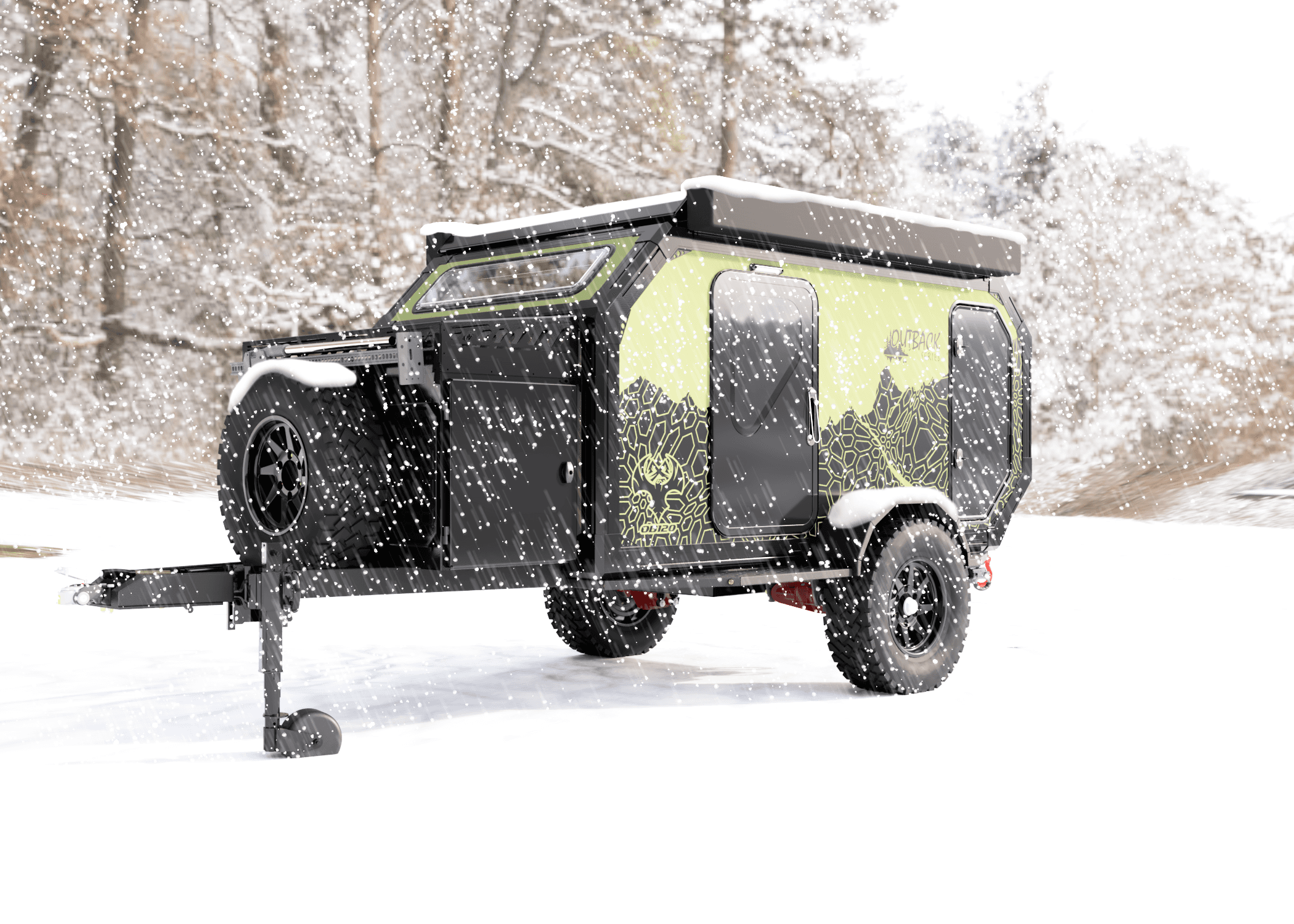

Unmatched 4-Season Comfort
Our fully insulated (almost 3” thick) wall panels matched with the Truma Combi furnace/water heater combo set the stage for cold-weather comfort down to -40˚. The heated water tank keeps everything functional when the weather gets below freezing outside. The rooftop 12V air conditioner keeps you cool during those hot summer nights, even off-grid.

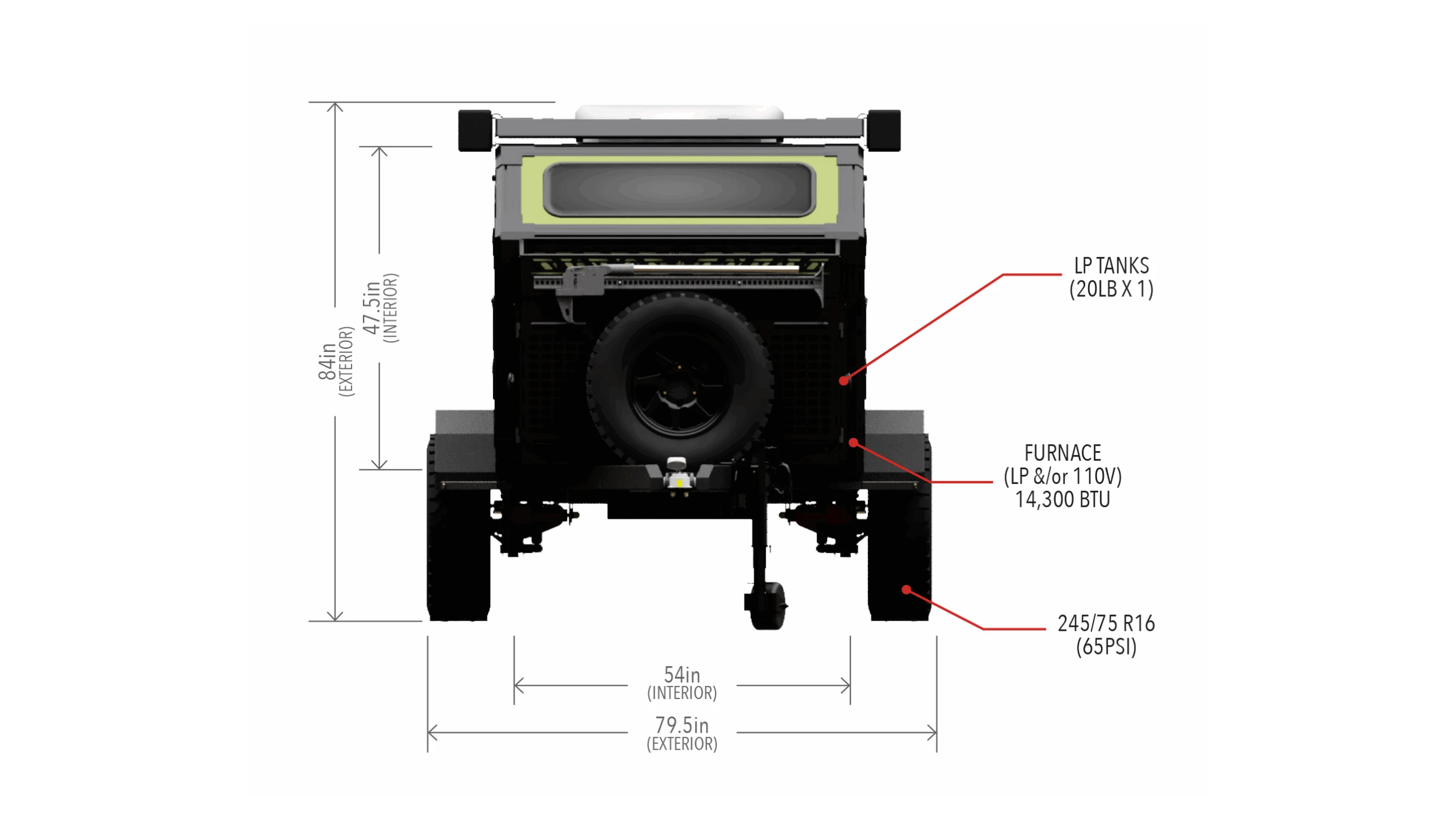

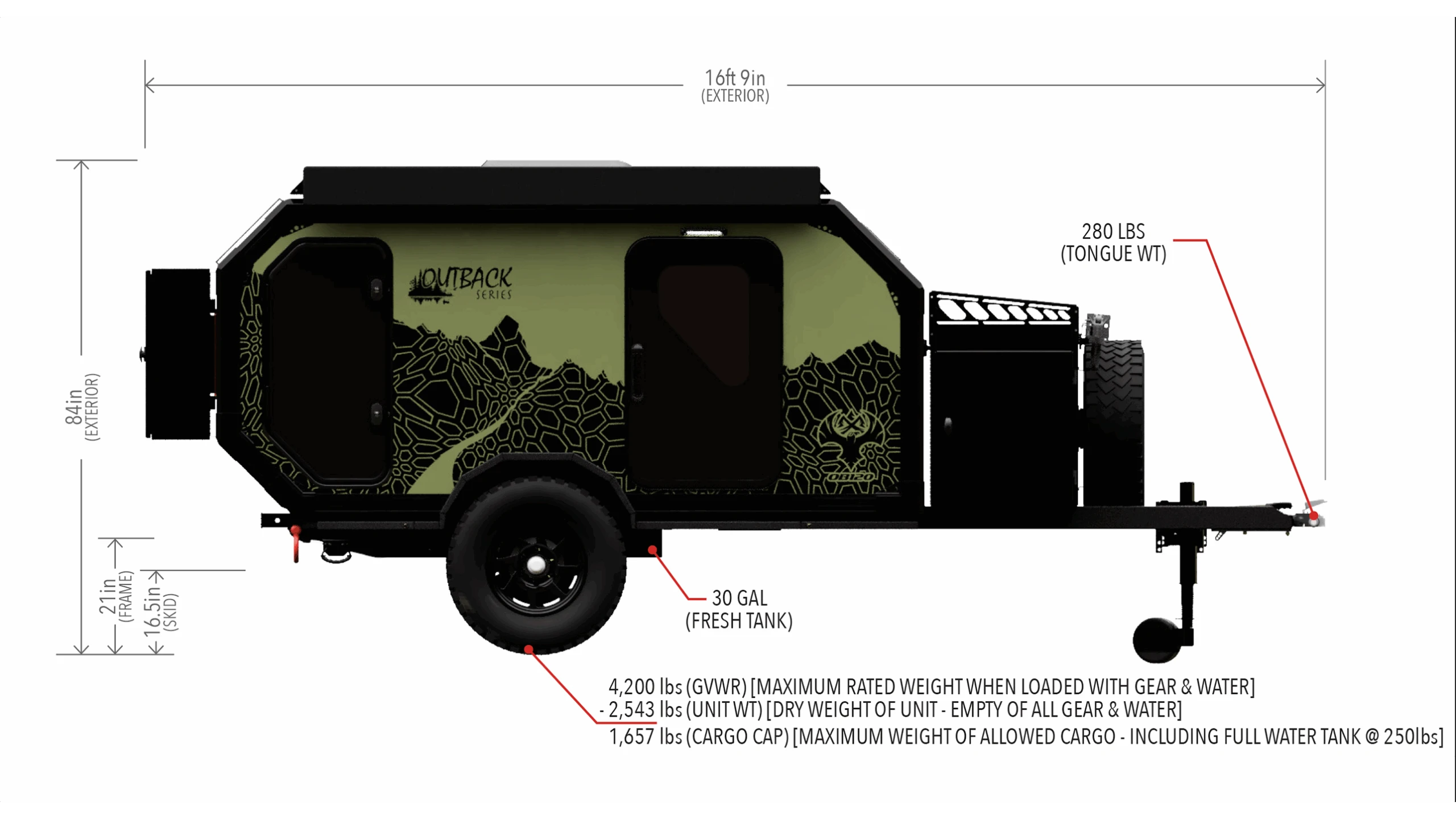

Dimensions & Weight
Overall Length: 16.9 ft
Exterior Height: 7.0 ft
Width (including fenders): 79.5 in
Interior Height: 47.5 in
Ground Clearance: 16.5 in to skid plate; 21 in to frame
Dry Weight: 2,543 lbs
GVWR: 4,200 lbs
Tongue Weight: 280 lbs
Cargo Capacity: 1,657 lbs

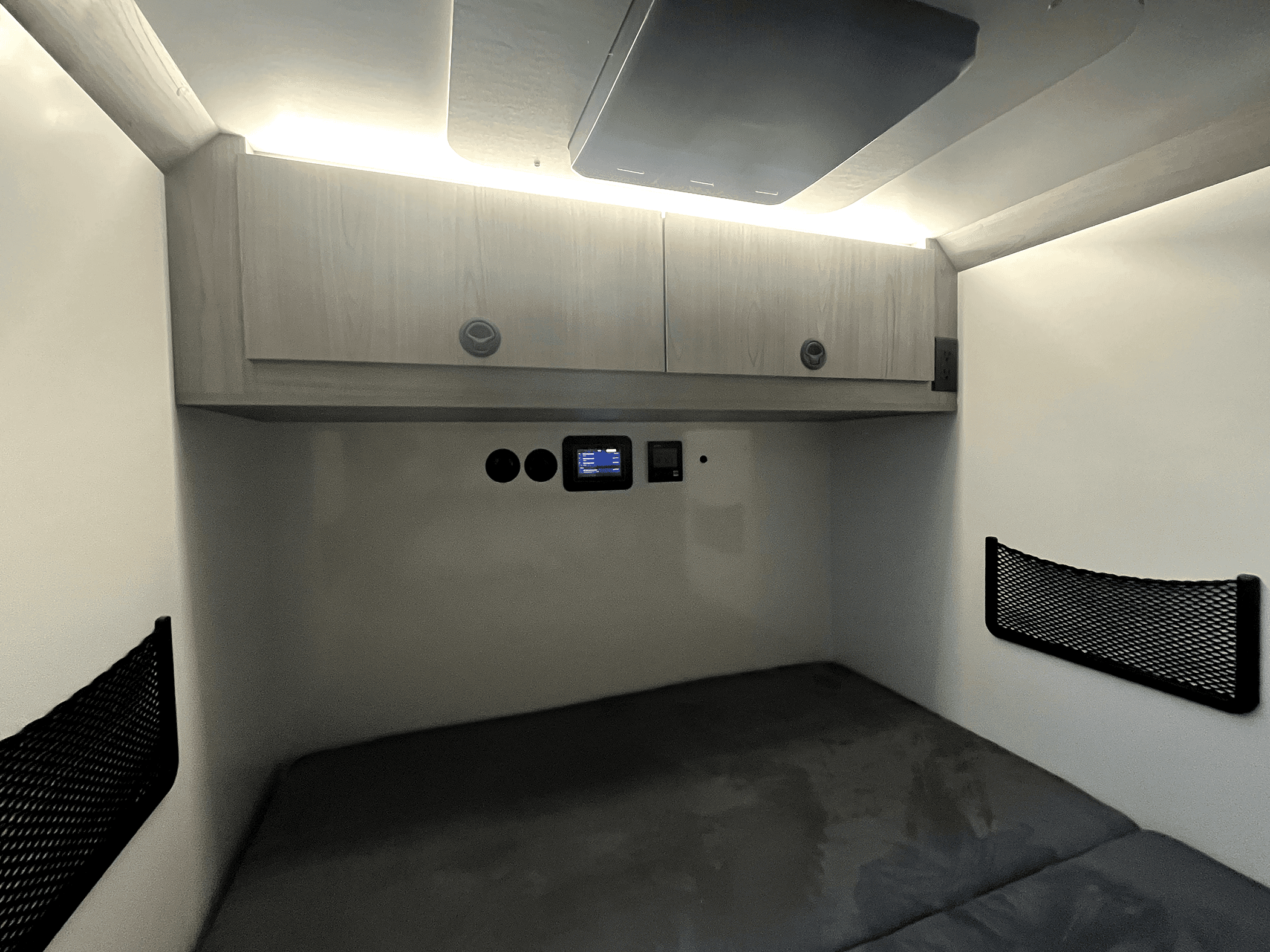

Sleeping & Living

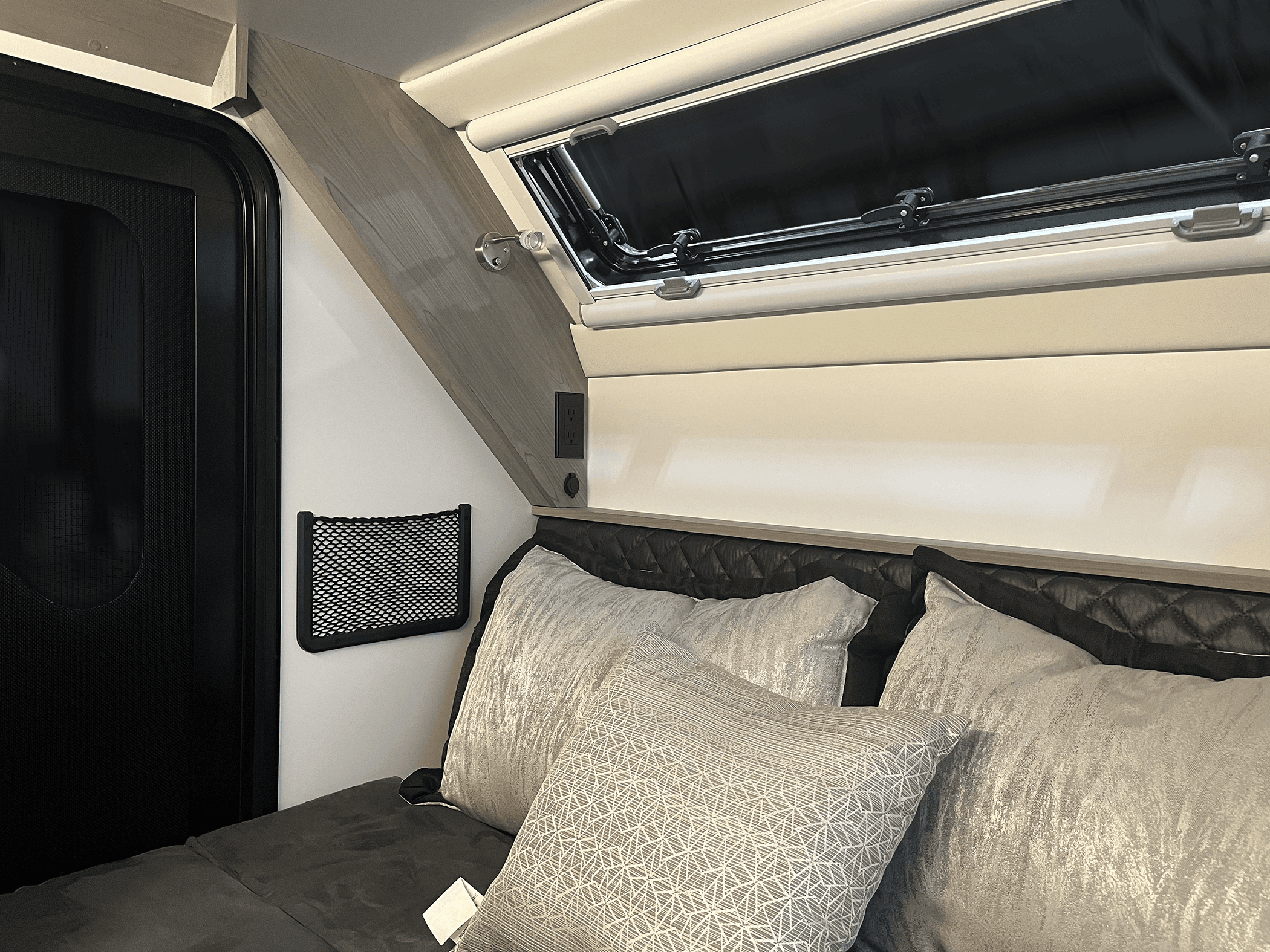

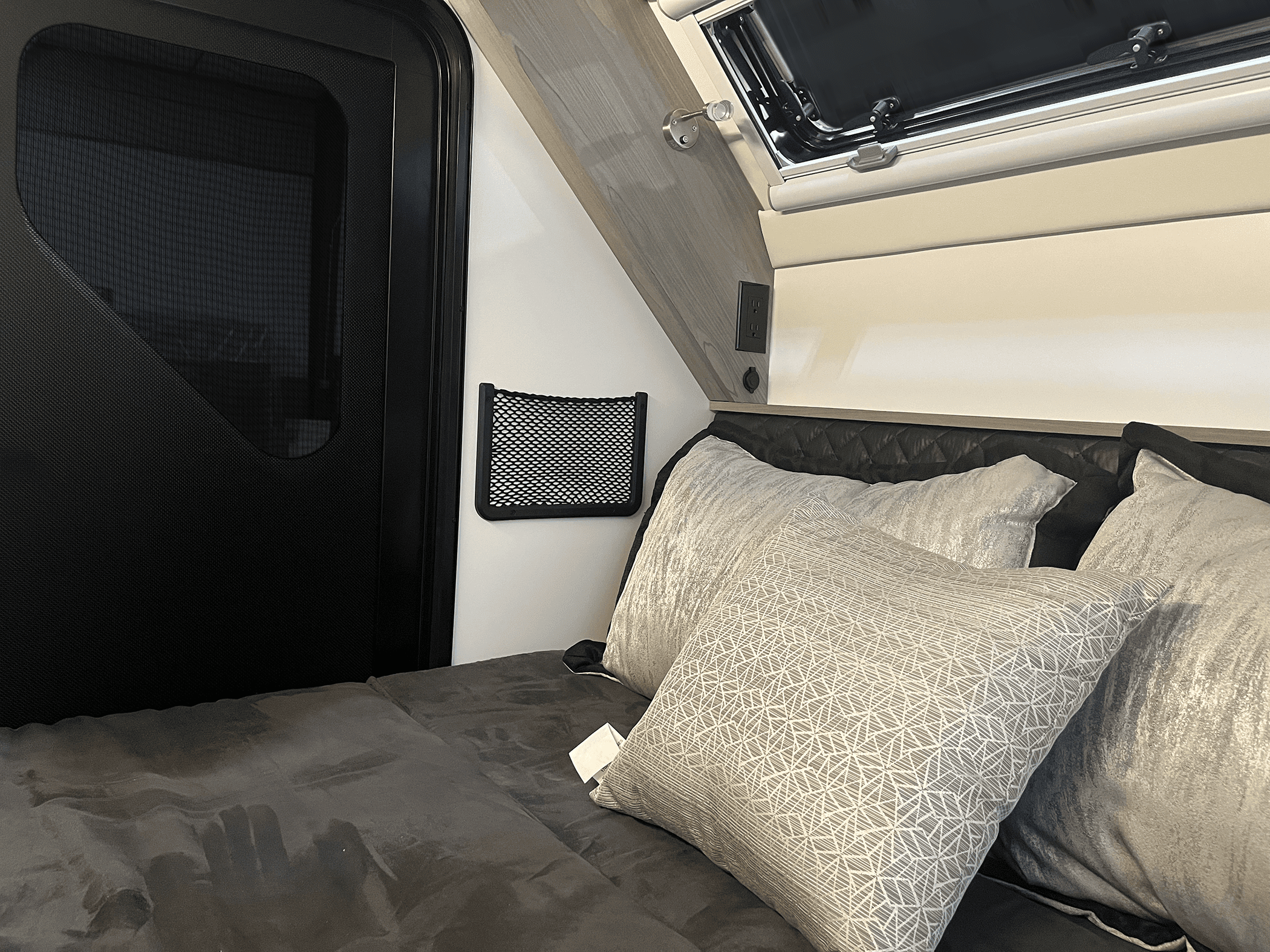

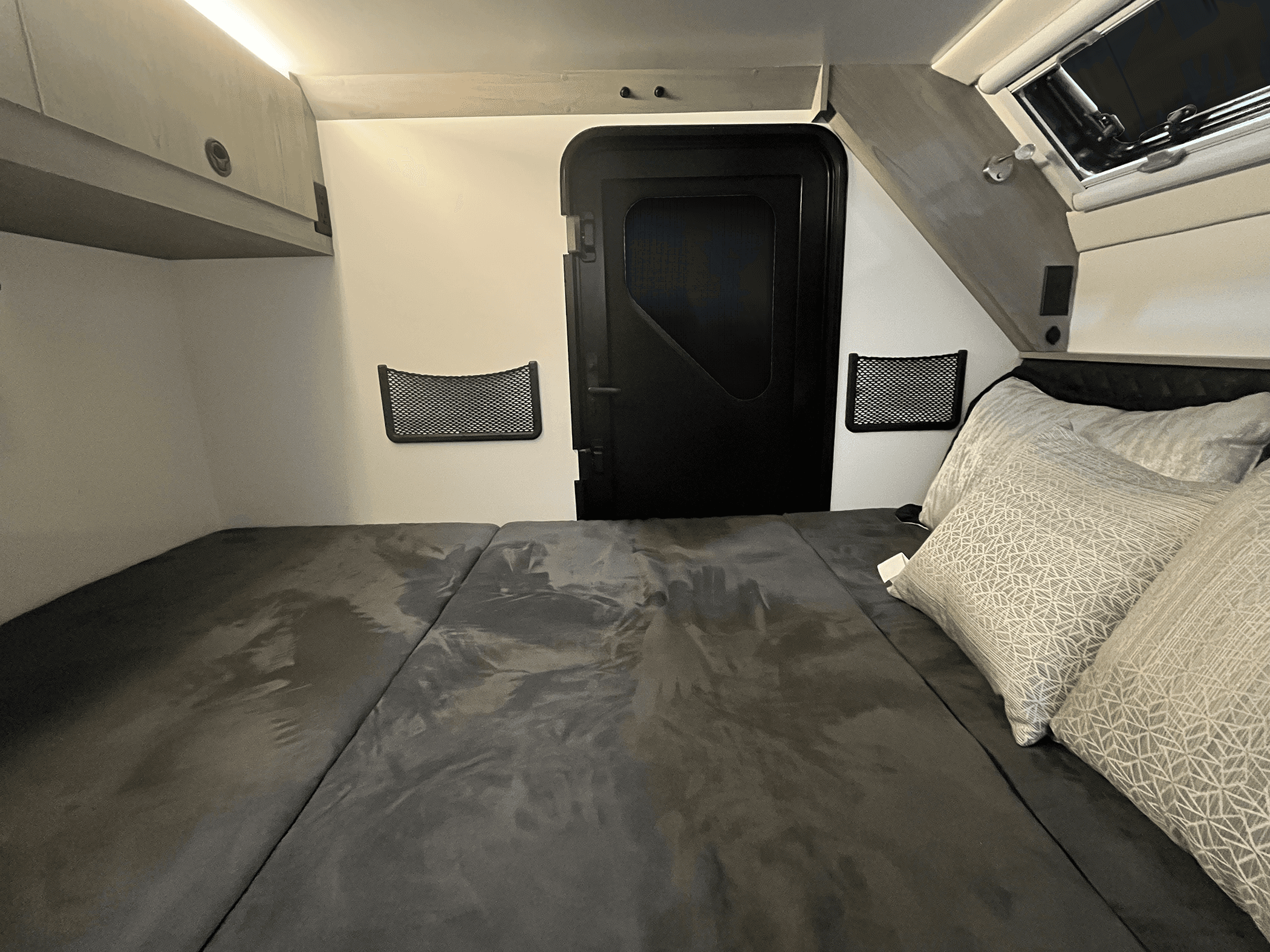

Sleeping Capacity: Sleeps 2
Awnings: 2
Kitchen: Full slide-out outdoor kitchen with pantry
Refrigerator/Freezer: Dual-zone 75L (2.65 cu ft)
Comfort & Climate
Air Conditioner: 1 (12V rooftop)
Heating: Truma Combi Furnace/Water Heater (14,300 BTU)
Insulation: Composite walls nearly 3” thick
Windows: Insulated dual-pane acrylic
Utilities & Power
Fresh Water Capacity: 30 gal
Propane Capacity: 20 lbs

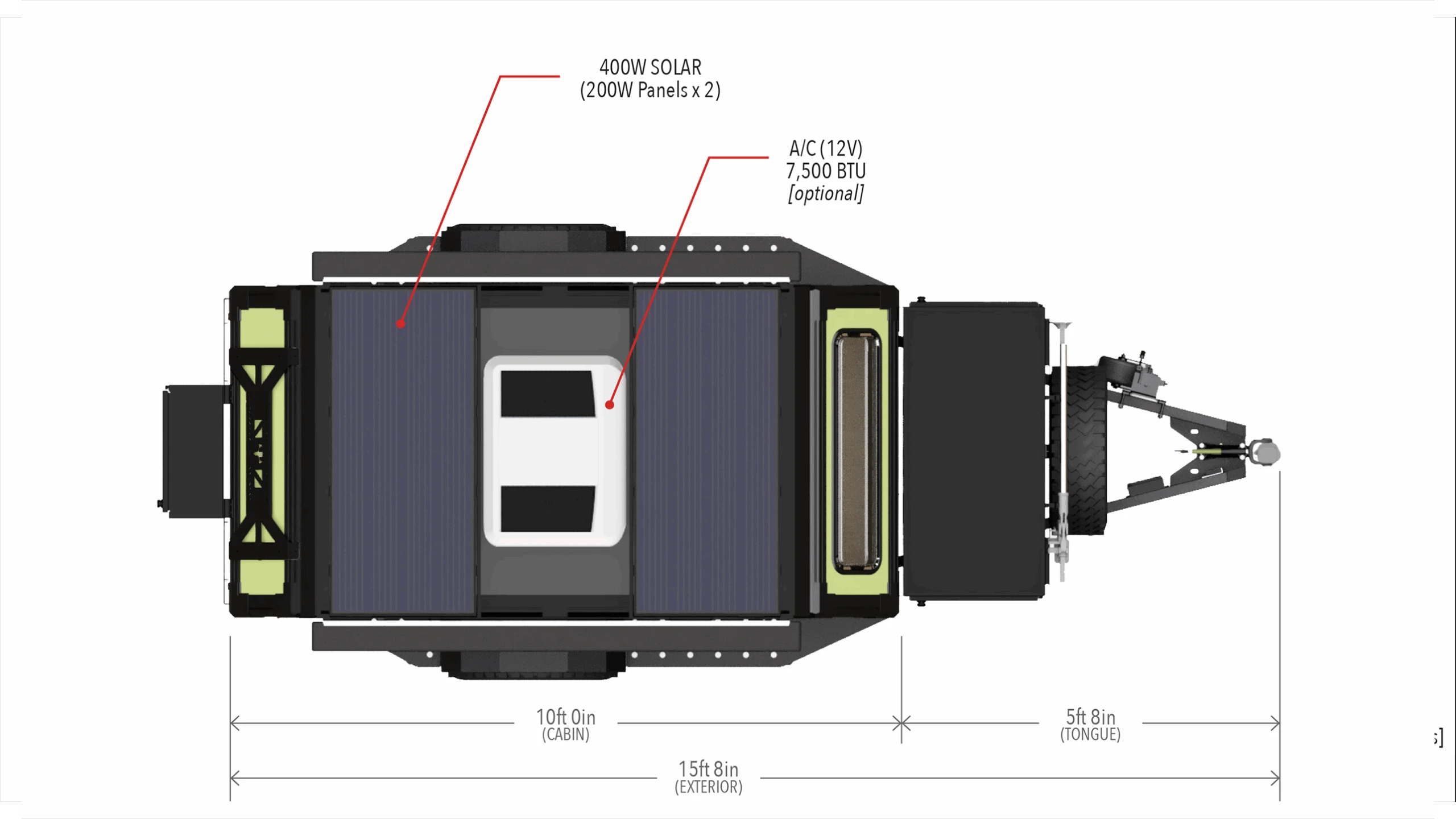

Solar Panels: 2 x 200W (400W total, optional)

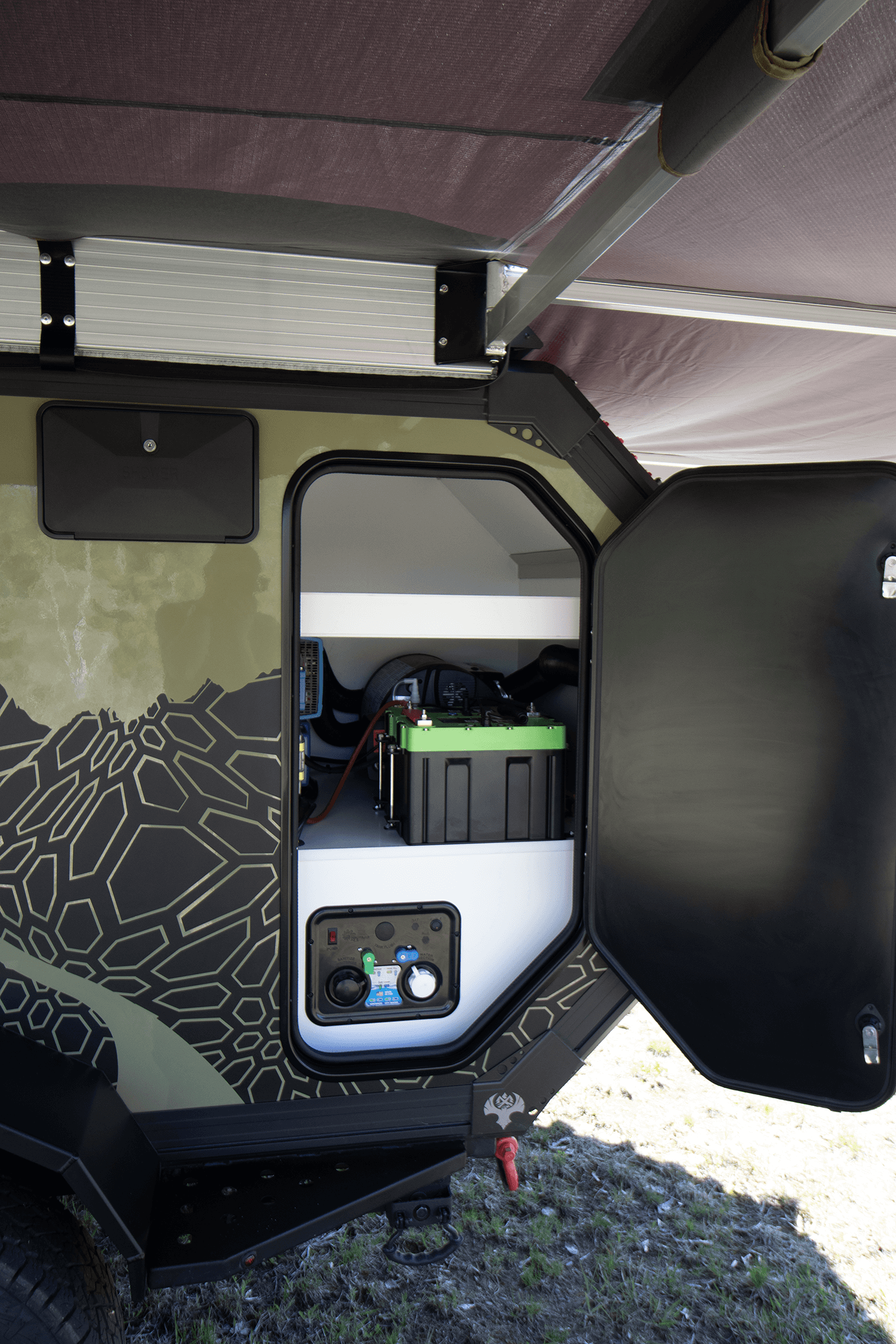

Battery Bank: 204Ah Lithium (2 x 102Ah, optional)
Inverter: 800W
Power System: Victron
Off-Road & Construction
Tire Size: 245/75 R16
Hitch: Cruisemaster DO35 articulating
Suspension: Cruisemaster CRS independent
Chassis: Steel, powder-coated, low center of gravity
