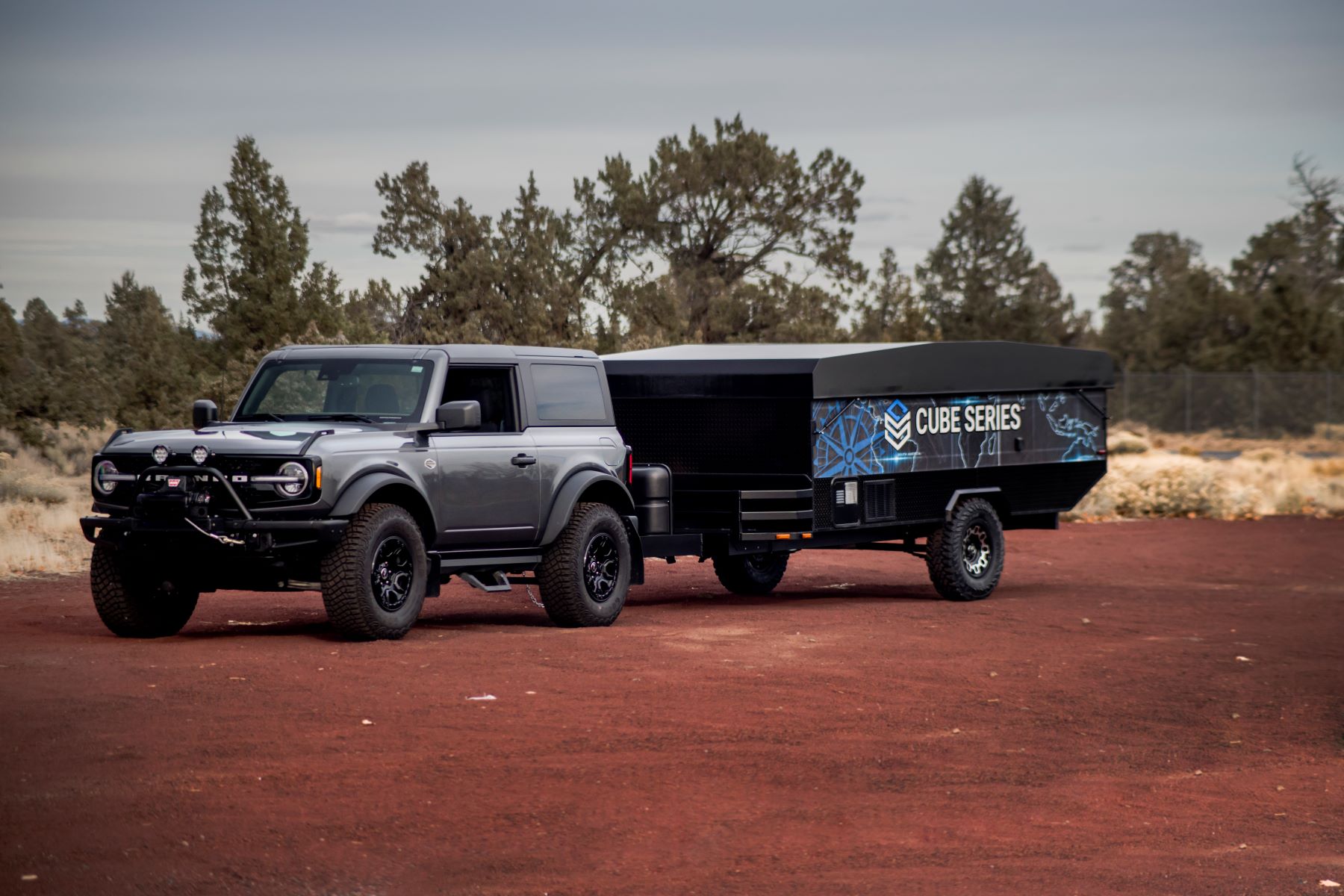

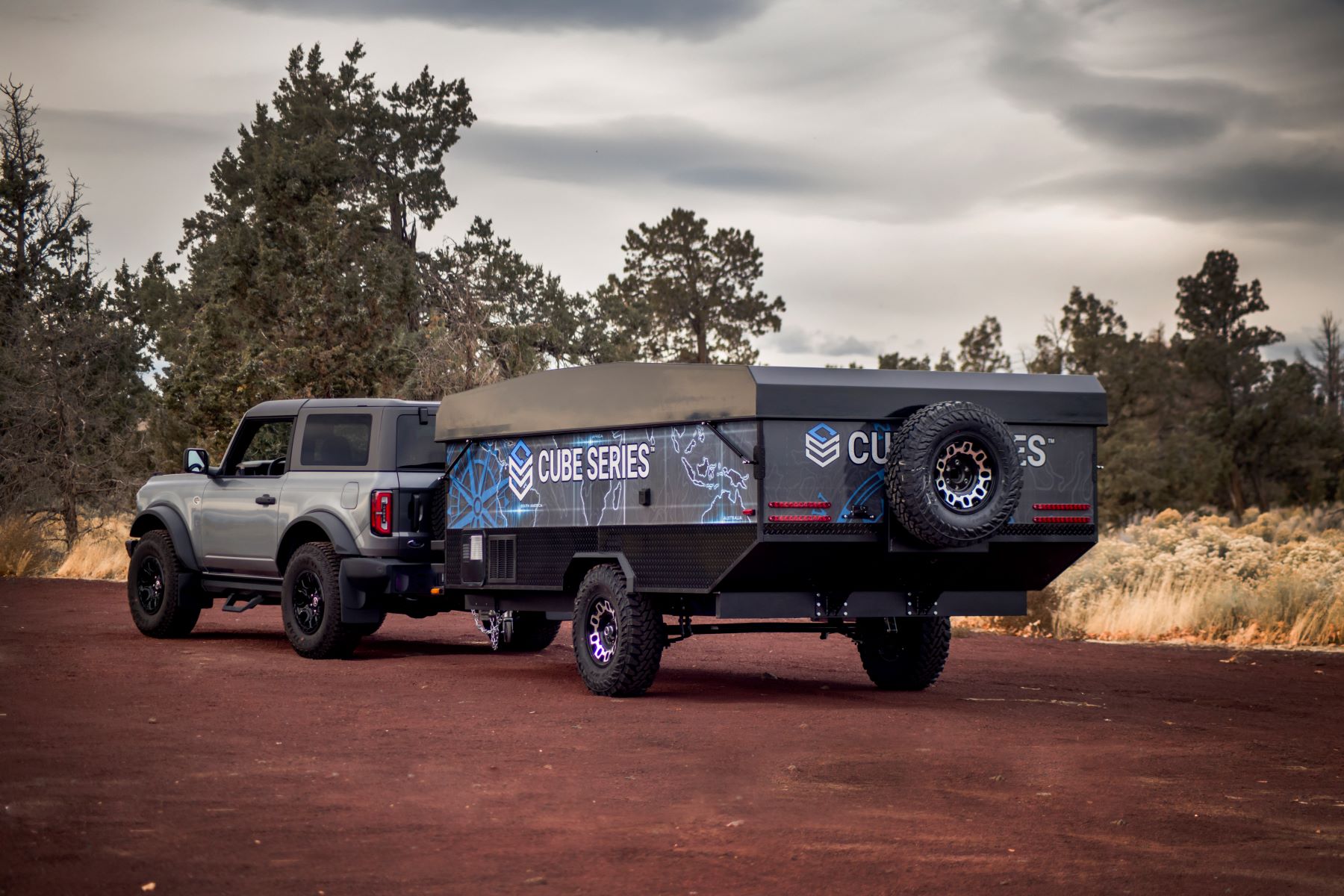

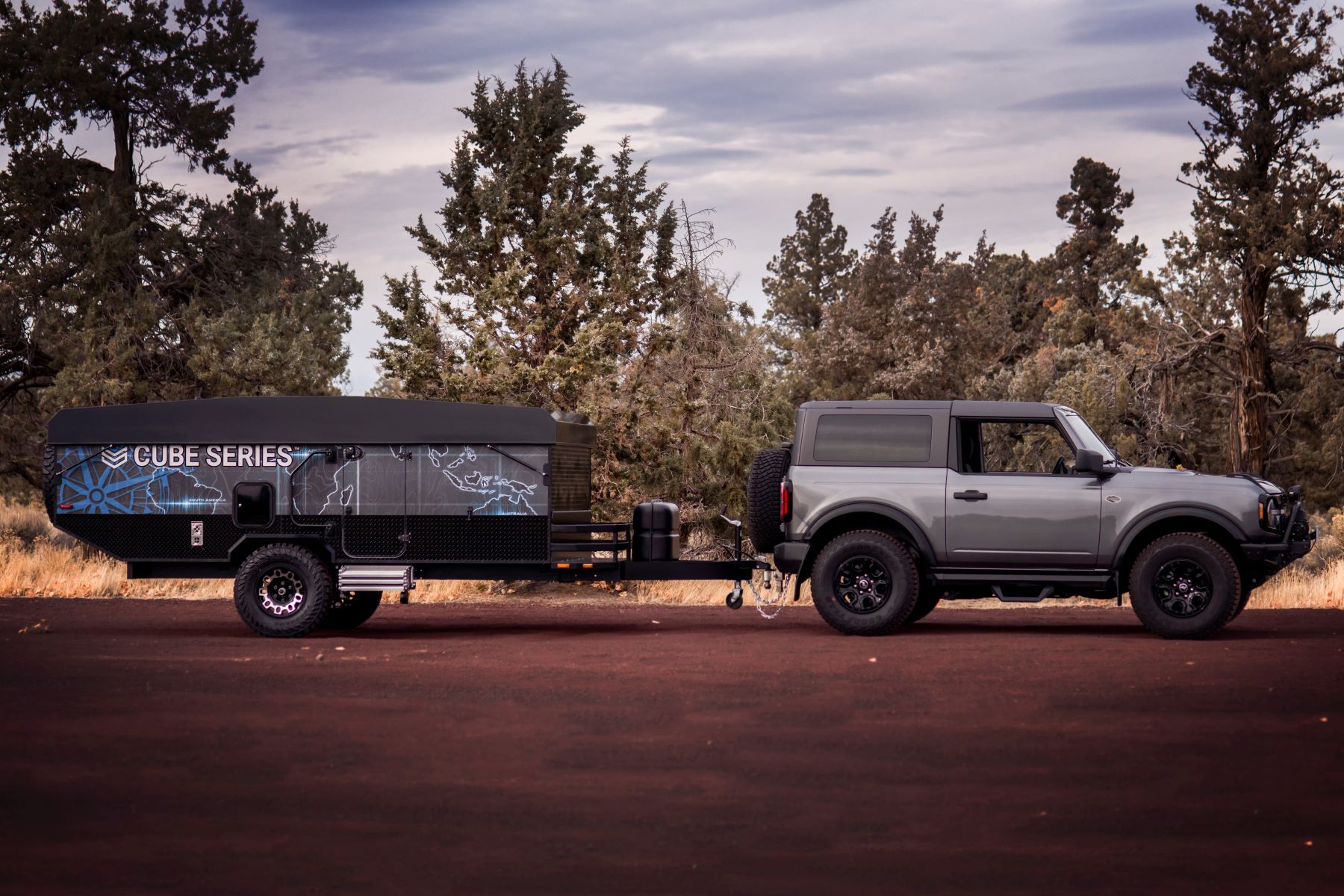

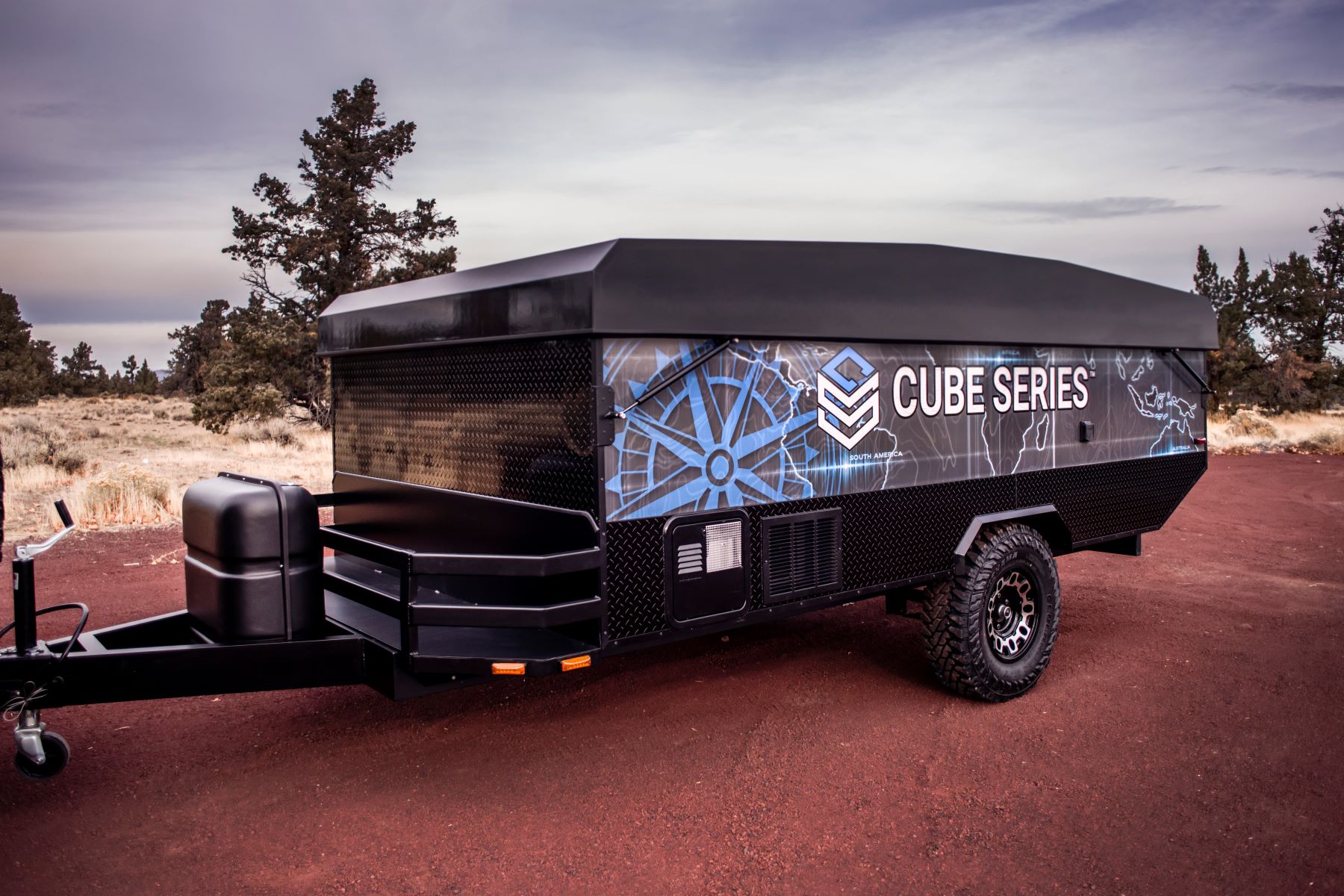

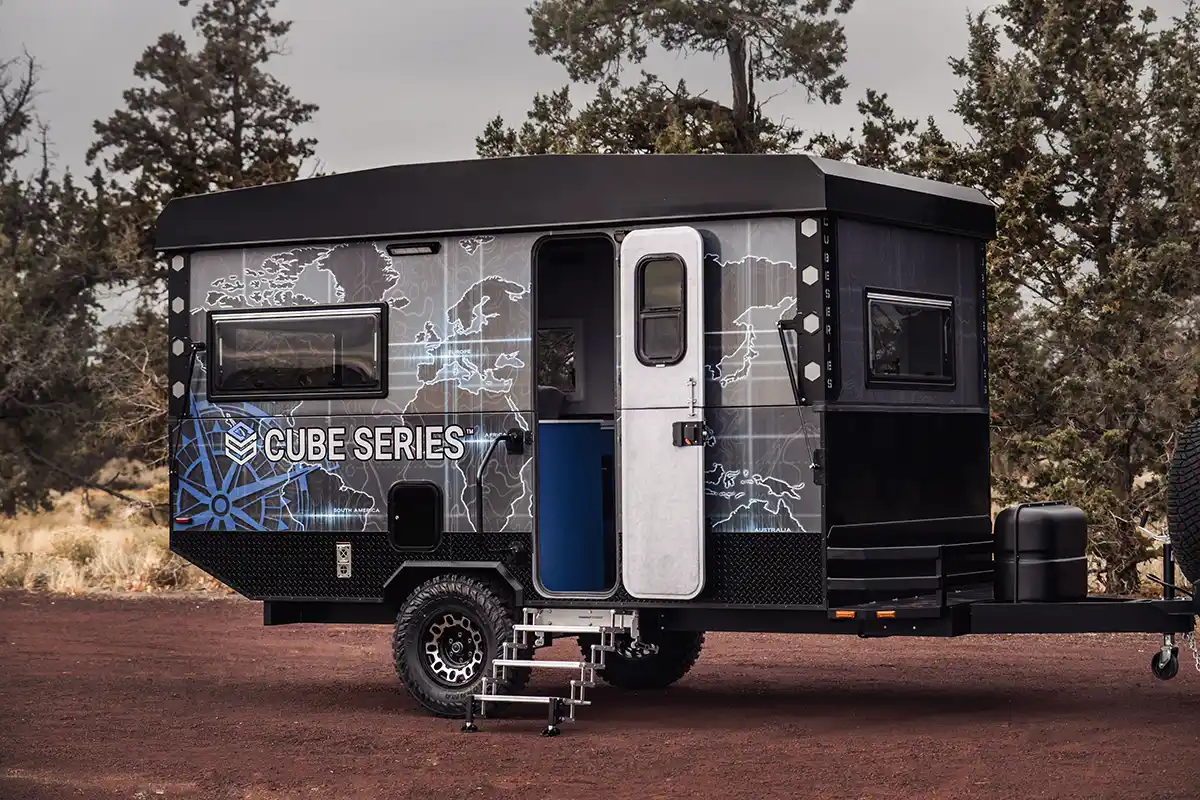

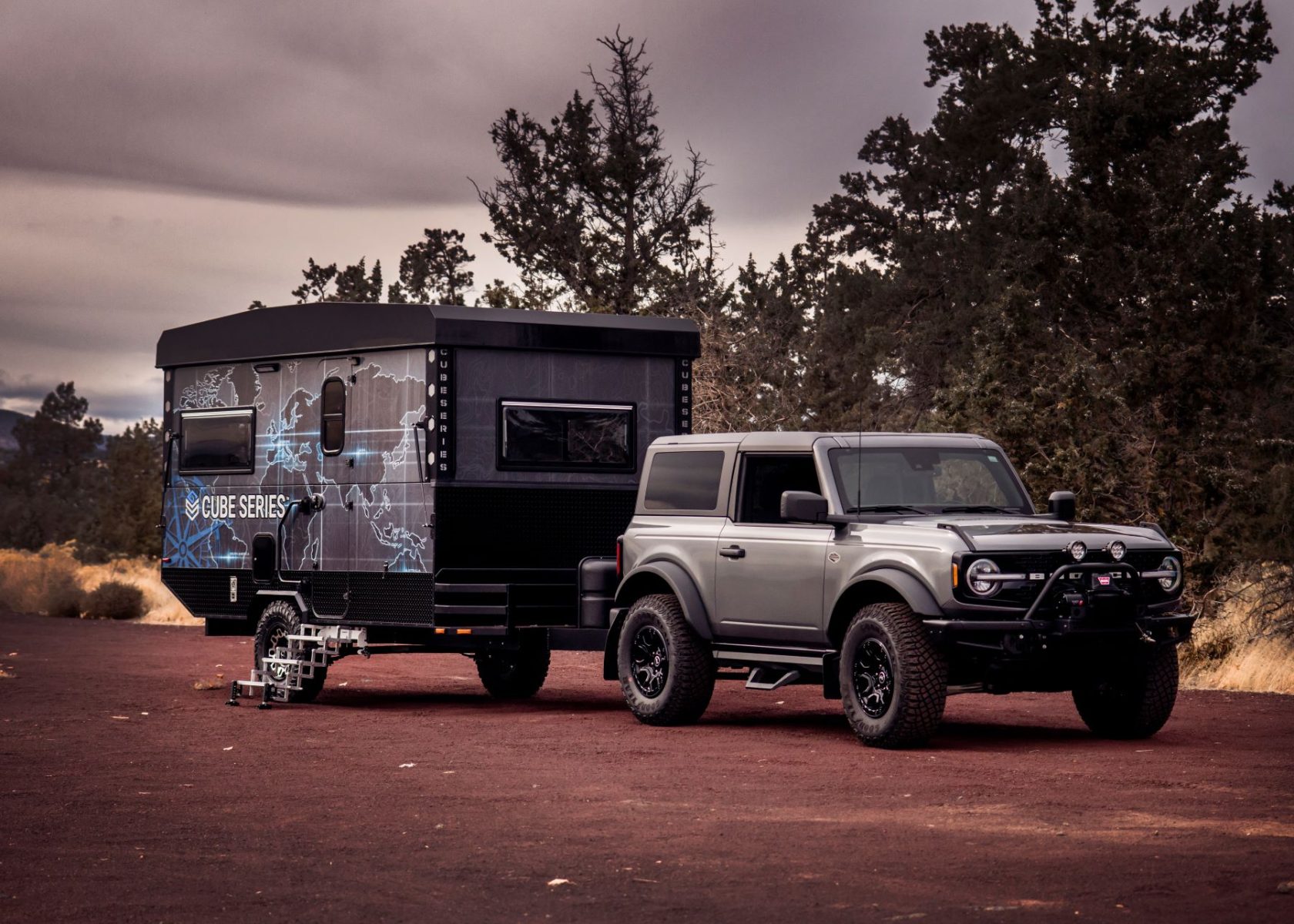

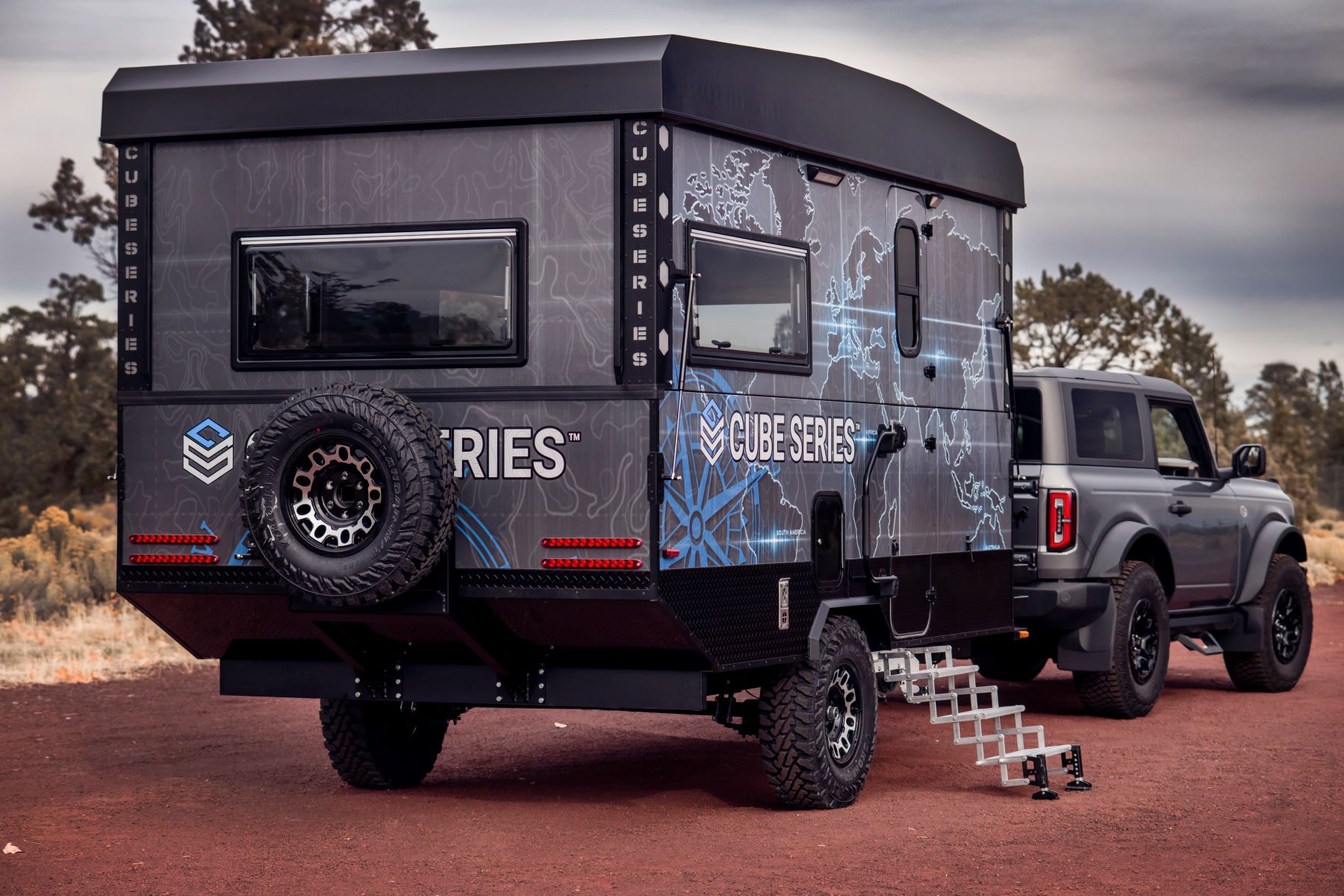

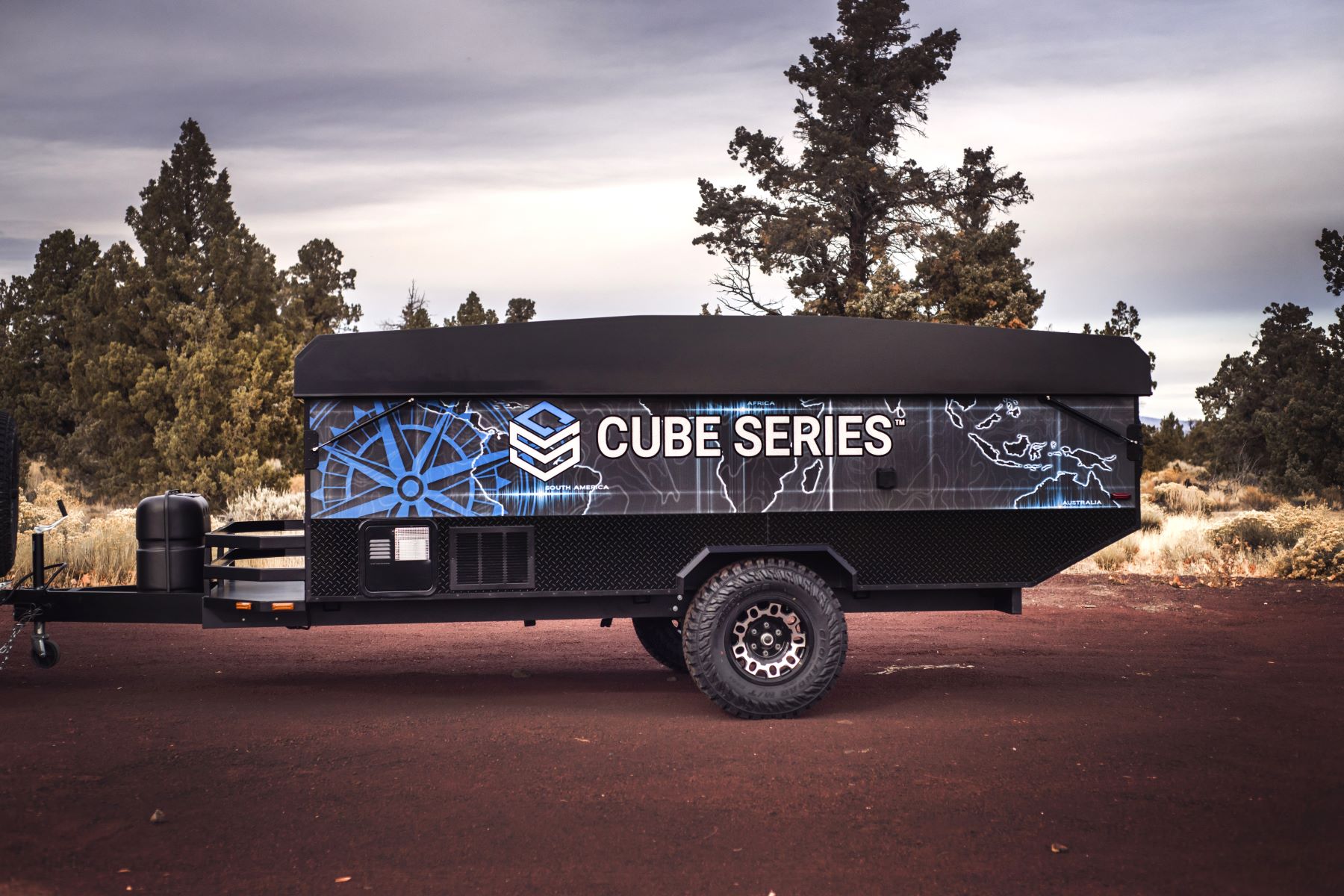

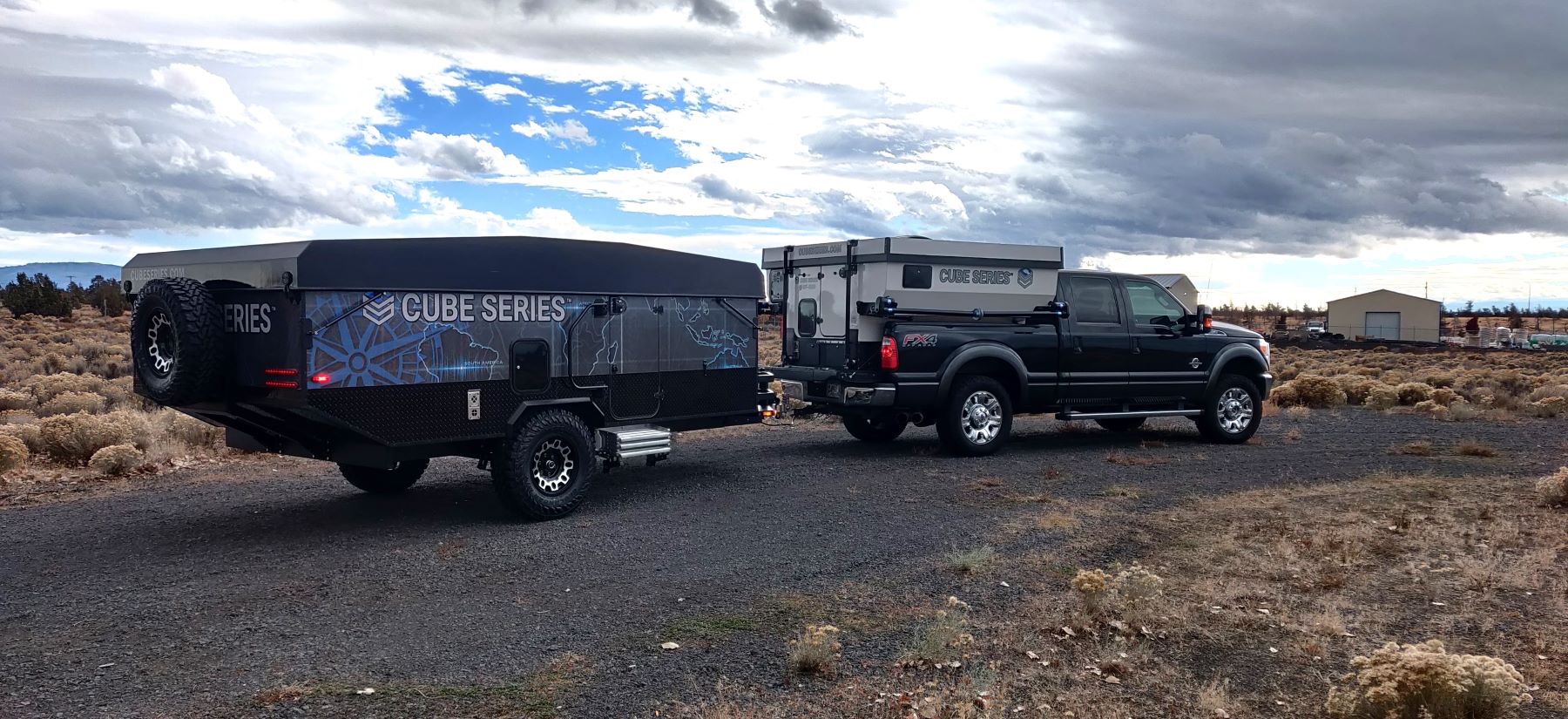

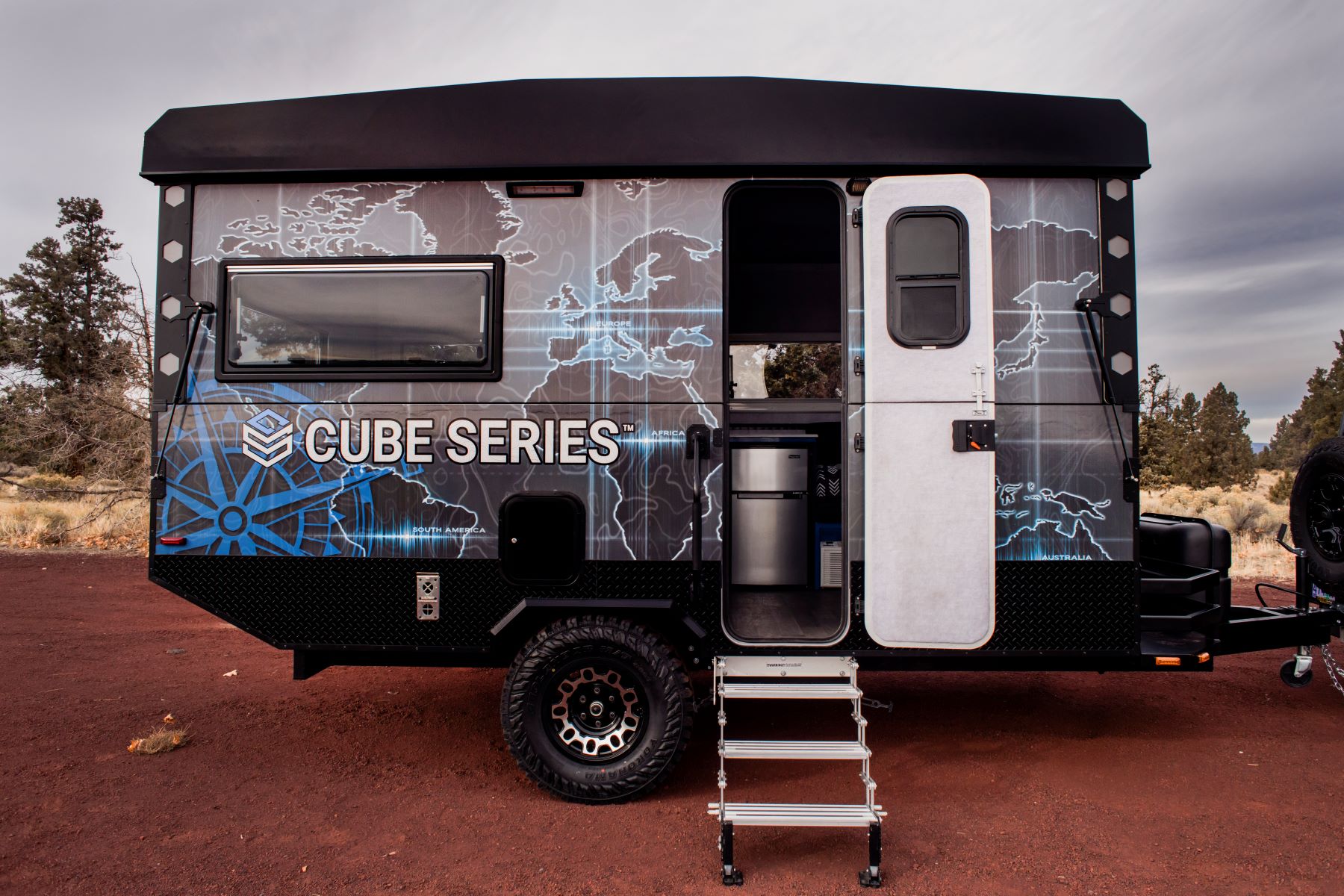

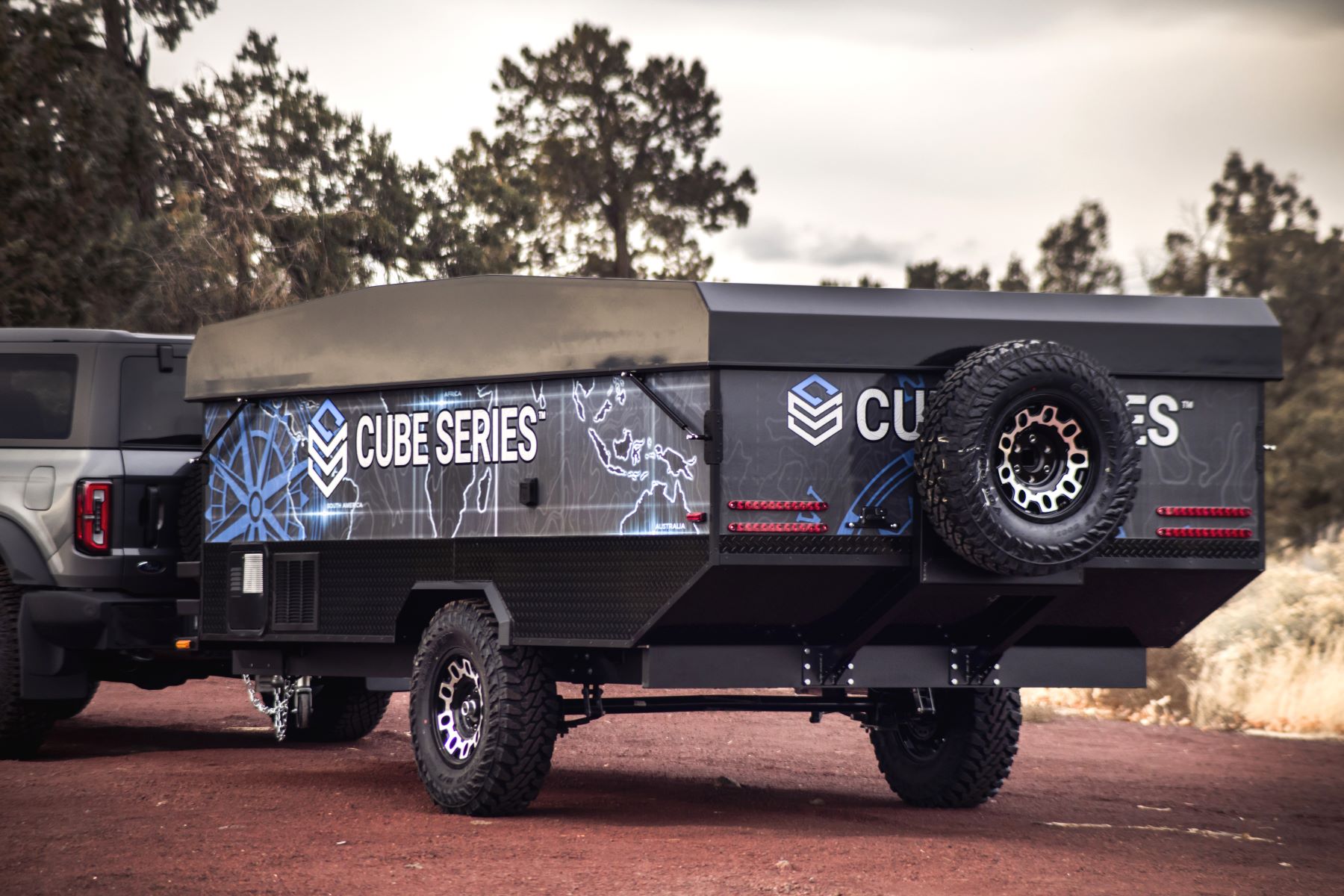

Cube Series Trailer
A revolutionary take on the traditional motorhome, the CubeSeries trailer is built using industry-grade aluminum, resilient composites, and numerous alloys as primary components. This gives the sleek trailer a seldom before seen sturdiness at a light weight. The load-bearing multipurpose roof system makes the trailer robust and built to last. The tough structured walls are secure and waterproof. It is easy to haul and has a patent pending smart folding system that makes setting it up in a matter of minutes! Needless to say, it is as spacious as one would expect from a great trailer. Who says you can’t hook up a 4 seasons suite up to your vehicle! The future is here now.
Standard Equipment & Options
CONSTRUCTION
Ultra-lite 100% Aluminum Basement Structure
All Molded fiberglass main tub, walls, and roof, (infused and vacuum bonded for stronger and liter parts)
One Piece Fiberglass Roof

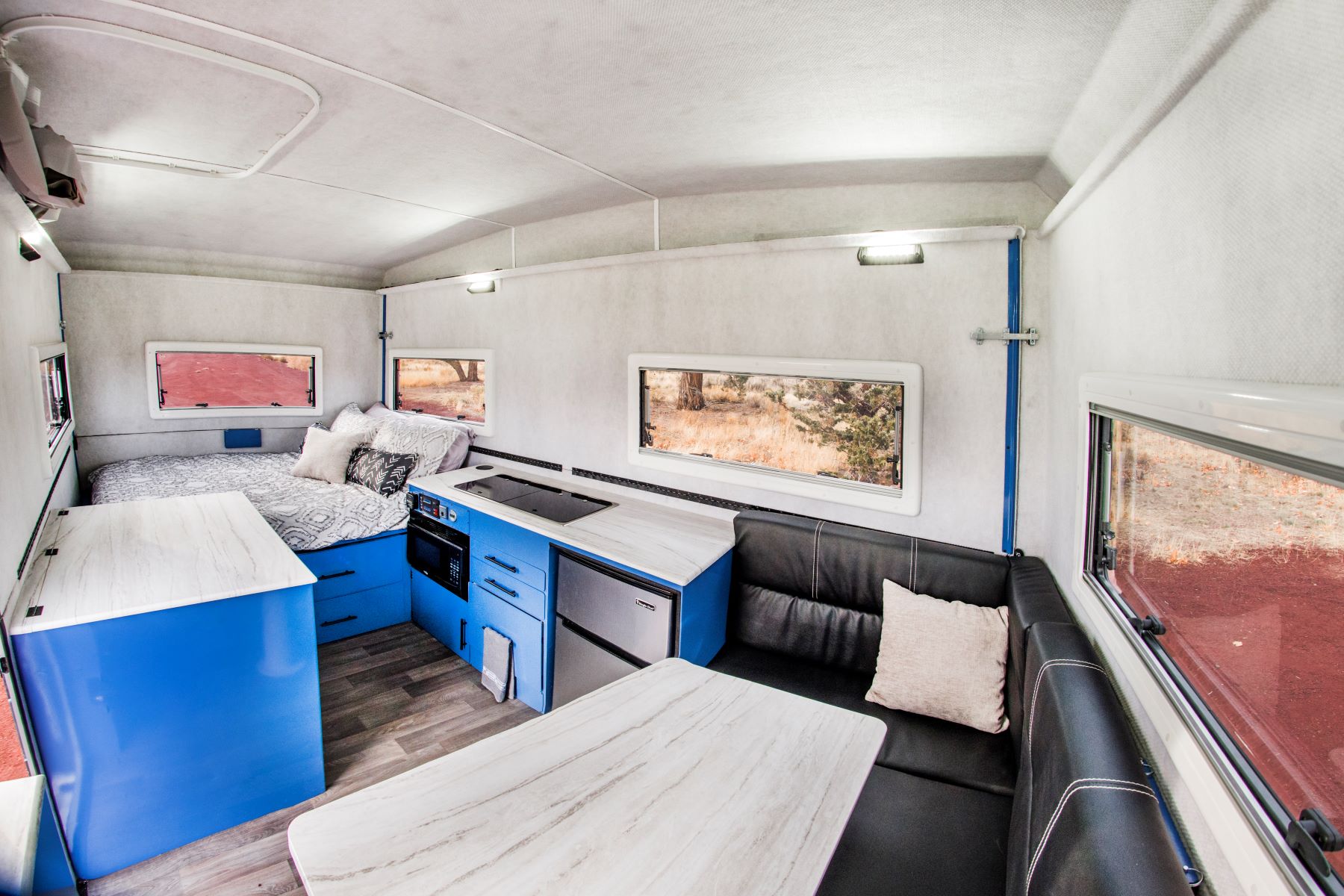

INTERIOR FEATURES
100% aluminum Cabinetry
Thermo foil Counter tops
2 Burner Range/ sink with glass top
3 Cubic Ft 110 V Refrigerator / Freezer
1.0 Cubic Ft Built in Microwave
Synthetic leather upholstery
“L” shaped dinette/ 80”sleeper
12 Volt LED Interior Lighting System
(Qty 1) electrical power stations with 110 V and
USB port
CONVENIENCE FEATURES
12 Volt LED entry Light w/Interior Switch
Enclosed Service Center
19,000 BTU Forced Air Furnace
Water Heater – 1.7 Gallon (12V)
Enclosed, Heated Area for Holding Tanks
Winterization System
Exterior Shower
Electric Water Pump
Tank monitoring system
Battery monitoring system
DC To DC Charger (for charging the battery from the truck)
EXTERIOR FEATURES
Locking Ext. Compartment Doors
Large Lightweight insulated Acrylic windows with pleated shades and screens
Radius Entry Door & Flush Mount Lock w/Dead Bolt
Fold Down Entry Steps
Hand rail
POWER SYSTEMS & SAFETY FEATURES
24 V power actuators for lifting the roof
30 Amp AC/DC Battery Charger
GFI Circuit Protection
Smoke, LPG Leak & CO Detectors
Fire Extinguisher
Freeze Resistant 1/2″ Color-Coded Water Lines
30 amp shore power hook up
12V AGM Battery
OPTIONS AND EXTRAS
3 exterior solid colors to choose from
2 Colors of upholstery (Black or Charcoal Grey)
3 colors of Cabinets (White, Black)
2 Countertop colors (Licorice or Symphony Alto)
6 gallon DSI Gas/Electric Hot Water Heater
Truma Comfort water heater
Wet Bath with Cassette Toilet and Shower
6000 BTU Air conditioner
Max Air Delux Roof Vent
Keyless entry
Telescoping & Sliding Table Base
Base Model Spare tire & Tire Mount
Full Body Graphics
Off Road Package (6” frame/Offroad M/S tires & Spare, Front Storage Rack, 5000lb Axle
3 Different Solar only packages: 360 watt, 720,& 1140 watt (all with solar controller)
3 Different Off Grid Packages (all include 1140 watts of solar, 2000 watt inverter /charger 80 Amp & Battery Monitoring system
(Off Grid pkg) 300 AH Lithium Ion Battery
Camper Specifications & Capacities
All weights and measurements are approximate and subject to change*
TYPE | BASE WEIGHT | WIDTH | LENGTH | INTERIOR HEIGHT | COLLAPSED HEIGHT | OPEN HEIGHT |
|---|---|---|---|---|---|---|
Pop up with solid walls (no canvas) | 2730 lbs | 92″ | 17’-7” (Off Road 20-3”) | 7'-1" | 6’-4” (Off Road 6’-6”) | 9’-8” (Off Road 9’-10”) |
FRESH WATER | GREY WATER | BLACK WATER | LPG CAPACITY | FURNACE | WATER HEATER | SEASON |
|---|---|---|---|---|---|---|
25 Gallons | 25 Gallons | 2 1/2 Gallon cassette toilet (if equipped) | 14 Gallons | 18,000 BTU | 1.7 Gallon (12 volt) | 4 Season |
