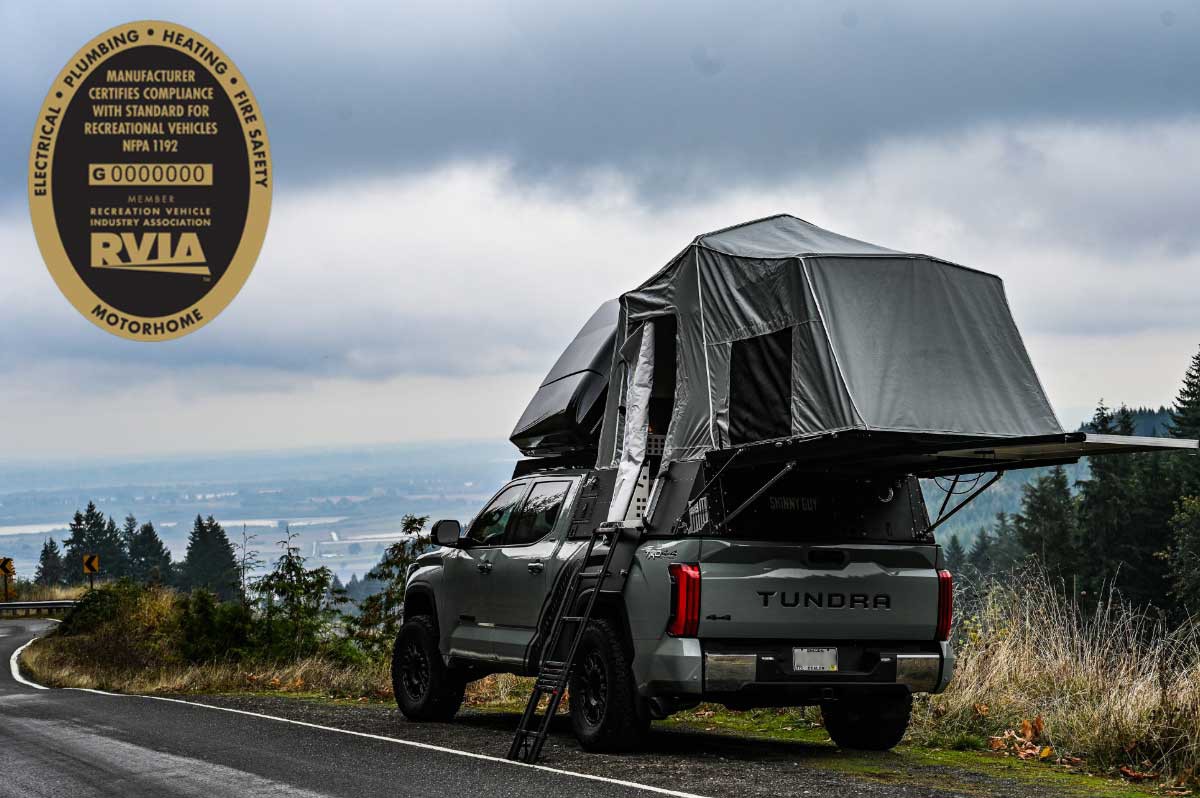

The BaseCap™ is the only cab-high canopy camper on the worldwide market. While it looks like and has all the storage capacity of a traditional truck cap, the BaseCap™ roof opens 180 degrees into a canopy camper with 6’ of sleeping space. Designed with the same high-quality and durable 1/8” aluminum shell as our other Skinny Guy truck camper models, the floor and cabinets have been removed, which allows the customer to have floor to ceiling storage space. Model shown is BaseCap™ 5.0. Specs vary by model. BaseCap™ models available: 5.0, 5.0 GLR, 5.5, 6.5, and 8.0.
Features:
1/8” aluminum exoskeleton structure for durability and lightweight strength
High precision CNC laser cut, press broke panels for a clean, modern build
Stainless steel fasteners (rivets, nuts, and bolts) for corrosion resistance

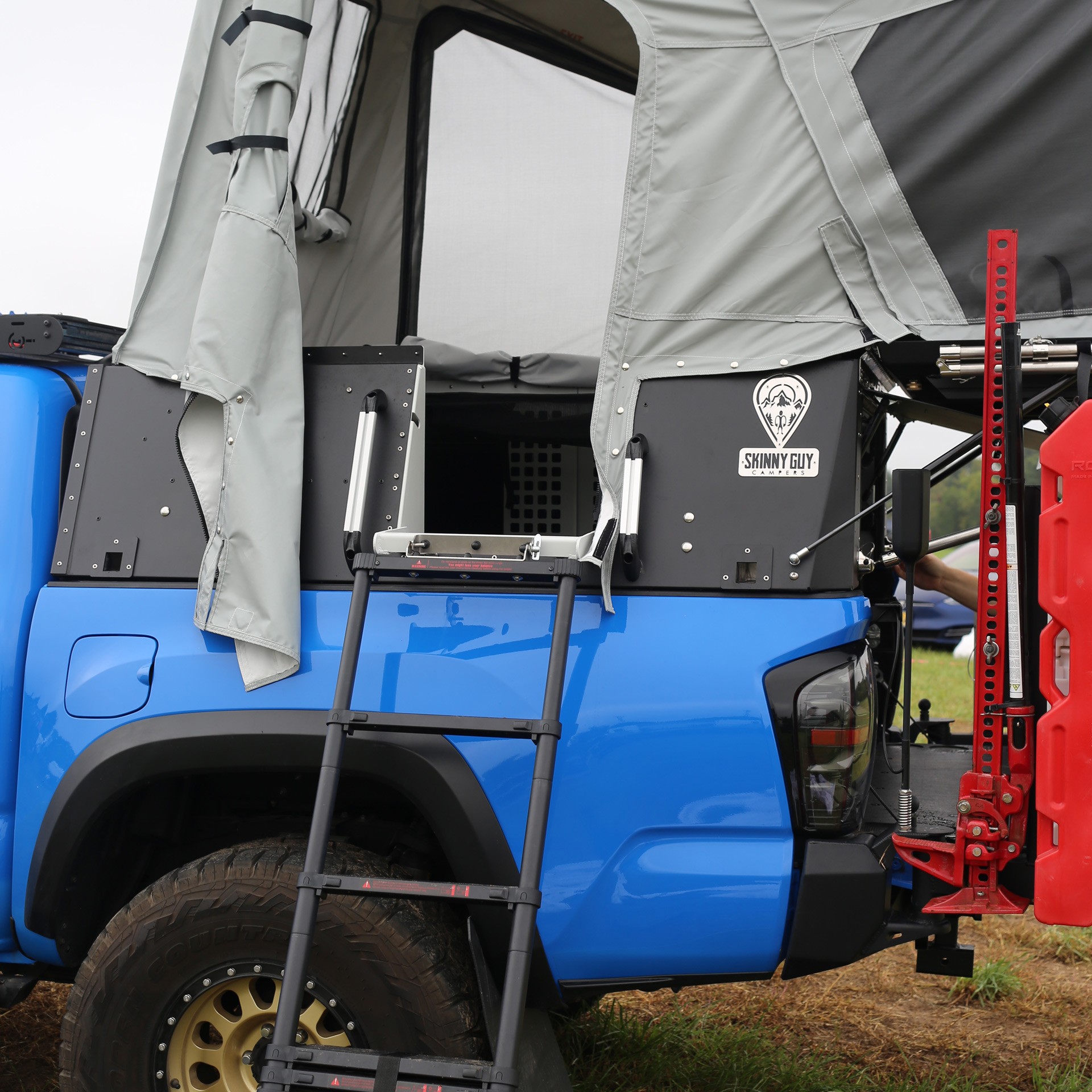

Self-deploying tent supported by stainless steel bows and fittings for quick setup
4-corner body-mounted hold-down ratchet straps for secure mounting
Proprietary rear hatch latch, operable from inside or outside for convenience and safety
Cab-high, garageable design—fits in low-height garages
Easily removable from the truck bed
Floor-to-ceiling storage space (no built-in floor or cabinets)
Sleeping bed with 600 lbs weight capacity
Bed sizes vary by model, with up to 6 feet of sleeping space
Fast setup time (about 2 minutes)
Quick removal from truck (5–10 minutes)
Extendable center bow system for standing height
Compatible with mid-size truck beds (approx. 5’ in length, narrow)
Full amenities available: heat, light, power, water, toilet, etc. (depending on configuration)
Optional solar panel (100W)
20 lb external propane tank
12-gallon fresh water tank and 9-gallon black water tank (on equipped models)
Lightweight: 500–775 lbs depending on model and options
This camper is designed for those who want rugged simplicity, quick setup, and the flexibility to use their truck bed for storage or adventure, all while maintaining comfort and convenience on the road.
Model | Bed Weight Capacity | Bed Size (L x W) | Set Up Time | Removal Time |
5.0 | 600 lbs | 80” x 40” | 2 min. | 5–10 min. |
5.0 GLR | 600 lbs | 77” x 46” | 2 min. | 5–10 min. |
5.5 | 600 lbs | 82” x 50” | 2 min. | 5–10 min. |
6.5 | 600 lbs | 77” x 50” | 2 min. | 5–10 min. |
8.0 | 600 lbs | 77” x 50” | 2 min. | 5–10 min. |
Specification | Detail |
|---|---|
Interior Height | 78” (6’ 6”) |
Refrigerator Capacity | 34L |
Sleeping Bed Weight Capacity | 600 lbs |
Dimensional Size of Bed | 80” L x 40” W |
Solar Panel Size | 100W |
External Propane Tank Size | 20 lbs |
Fresh Water Tank Capacity | 12 gal |
Black Water Tank Capacity | 9 gal |
Weight of Unit | 500-775 lbs |
Set Up Time | 5 - 10 min |
Time to Remove from Truck | 30 min |
Truck Bed Compatibility | Mid-size truck beds, approx. 5’ in length, narrow |
Special Features | Extendable center bow system for standing height |
Amenities | Full amenities: heat, light, power, water, toilet, etc. |
